steyr tipper / dump truck

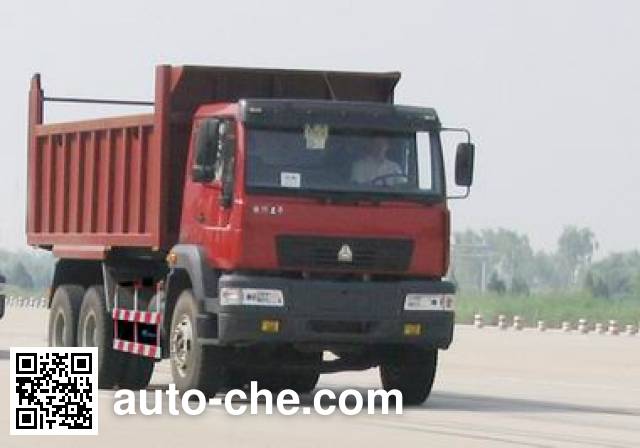

Sida Steyr ZZ3251M2941 dump truck manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

Sida Steyr dump truck ZZ3251M2941

ZZ3251M2941

Sida Steyr Chinese dump truck (tipper truck) ZZ3251M2941 manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of , , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3251M2941 chassis. Max. speed is 67, 75 km/h, wheelbase is 2925+1300, 2925+1350 mm, engine: WD615.62 / WD615.62 / WD615.87 / WD615.87 / 6C260-2 / 6CL280-2, cab seating capacity is  2, curb weight is of the China dump truck 11250, 11350, 11450, 11600 kg, cargo body is 4600 × 2300 × 1000/1100/1200/1300 mm, gross vehicle weight is 25000 kg.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3251M2941
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3251M2941

Engine of the China dump truck Sida Steyr ZZ3251M2941

Engine Specifications of the China dump truck
Engine ModelWD615.62 / WD615.62 / WD615.87 / WD615.87 / 6C260-2 / 6CL280-2
Engine displacement (cc)9726 / 9726 / 9726 / 9726 / 8268 / 8820
Engine power (kW)196 / 196 / 213 / 213 / 192 / 206

Dimensions and Weights of the China dump truck Sida Steyr ZZ3251M2941

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)7125
Overall width (mm)2490
Overall height (mm)3250/3450
Cargo Body Dimensions
Cargo body length (mm)4600
Cargo body width (mm)2300
Cargo body height (mm)1000/1100/1200/1300
Weights
Curb weight of the China dump truck (kg)11250, 11350, 11450, 11600
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.13
Wheel Base
Wheelbase (mm)2925+1300, 2925+1350
Front and Rear Overhang
Front overhang (mm)1320
Rear overhang (mm)1580, 1530
Angle of Approach and Departure
Angle of approach (deg.)20.5
Angle of departure (deg.)28

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3251M2941
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3251M2941 (dump truck)
Max. speed67, 75
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car optional green container with lid, cover the quality of 250kg. The car should be installed in the rear of the body reflective logo. Extended cab car in front of a radiator mask.
(Note: possible inaccuracies)
