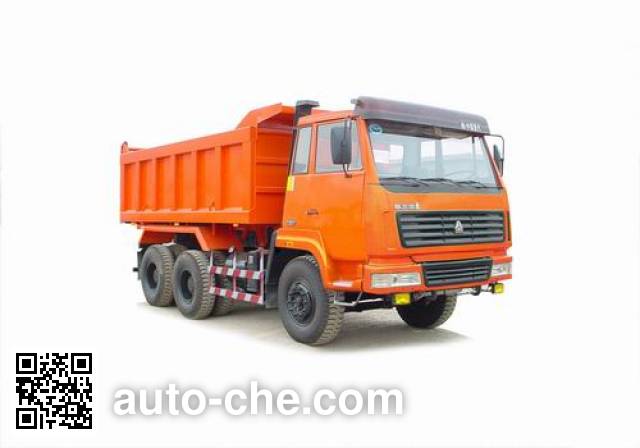

Sida Steyr ZZ3242L3246 dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sida Steyr dump truck ZZ3242L3246

ZZ3242L3246

Sida Steyr Chinese dump truck (tipper truck) ZZ3242L3246 manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3242L3246 chassis. Max. speed is 75 km/h, wheelbase is 3225+1350 mm, gross vehicle weight is 24000 kg, engine: WD615.62 / WD615.62 / / /, cargo body is 5100 × 2300 × 860/1000/1100/1200 mm, cab seating capacity is  2, curb weight is of the China dump truck 10660, 10760, 10830, 10900 kg.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3242L3246
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3242L3246

Engine of the China dump truck Sida Steyr ZZ3242L3246

Engine Specifications of the China dump truck
Engine ModelWD615.62 / WD615.62 / / /
Engine displacement (cc)9726 / 9726
Engine power (kW)196 / 196 /

Dimensions and Weights of the China dump truck Sida Steyr ZZ3242L3246

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)7860
Overall width (mm)2496
Overall height (mm)3210
Cargo Body Dimensions
Cargo body length (mm)5100
Cargo body width (mm)2300
Cargo body height (mm)860/1000/1100/1200
Weights
Curb weight of the China dump truck (kg)10660, 10760, 10830, 10900
Gross vehicle weight (kg)24000
Load factor (payload to weight ratio)1.20
Wheel Base
Wheelbase (mm)3225+1350
Front and Rear Overhang
Front overhang (mm)1560
Rear overhang (mm)1725
Angle of Approach and Departure
Angle of approach (deg.)22
Angle of departure (deg.)43

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3242L3246
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3242L3246 (dump truck)
Max. speed75
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car should be installed in the rear of the body reflective logo.The car optional green container with lid, cover the quality of 300kg. Quality can be rated as: 12970kg.
(Note: possible inaccuracies)
