steyr tipper / dump truck

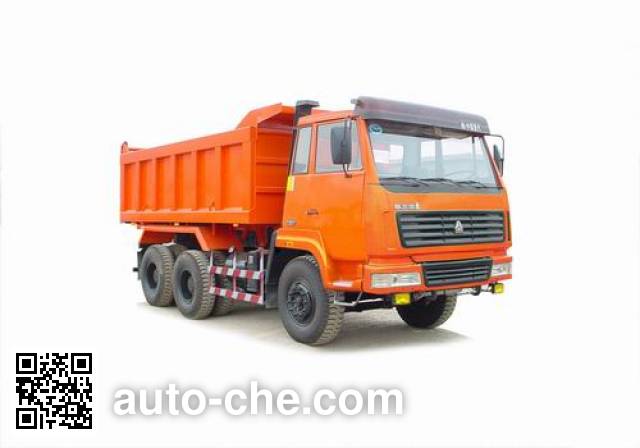

Sida Steyr ZZ3242L2946 dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sida Steyr dump truck ZZ3242L2946

ZZ3242L2946

Sida Steyr Chinese dump truck (tipper truck) ZZ3242L2946 manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3242L2946 chassis. Cab seating capacity is  2, gross vehicle weight is 24000 kg, wheelbase is 2925+1350 mm, max. speed is 75 km/h, engine: WD615.62 / WD615.62 / / /, cargo body is 4800 × 2300 × 1000/1200/1300 mm, curb weight is of the China dump truck 10170, 10590, 10800 kg.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3242L2946
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3242L2946

Engine of the China dump truck Sida Steyr ZZ3242L2946

Engine Specifications of the China dump truck
Engine ModelWD615.62 / WD615.62 / / /
Engine displacement (cc)9726 / 9726
Engine power (kW)196 / 196 /

Dimensions and Weights of the China dump truck Sida Steyr ZZ3242L2946

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)7416
Overall width (mm)2496
Overall height (mm)3150/3250/3350
Cargo Body Dimensions
Cargo body length (mm)4800
Cargo body width (mm)2300
Cargo body height (mm)1000/1200/1300
Weights
Curb weight of the China dump truck (kg)10170, 10590, 10800
Gross vehicle weight (kg)24000
Load factor (payload to weight ratio)1.22
Wheel Base
Wheelbase (mm)2925+1350
Front and Rear Overhang
Front overhang (mm)1560
Rear overhang (mm)1581
Angle of Approach and Departure
Angle of approach (deg.)22
Angle of departure (deg.)45

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3242L2946
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3242L2946 (dump truck)
Max. speed75
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car should be installed in the rear of the body reflective logo.The car optional green container with lid, cover the quality of 280kg.
(Note: possible inaccuracies)
