steyr tipper / dump truck

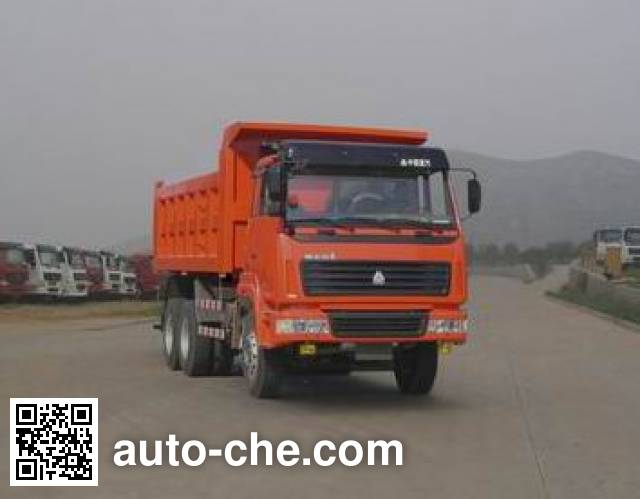

Sida Steyr ZZ3206N3246A dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sida Steyr dump truck ZZ3206N3246A

ZZ3206N3246A

Sida Steyr Chinese dump truck (tipper truck) ZZ3206N3246A manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3206N3246A chassis. Engine: WD615.69, curb weight is of the China dump truck 9910 kg, wheelbase is 3225+1350 mm, max. speed is 75 km/h, gross vehicle weight is 20000 kg, cargo body is 5400/5100/4800 × 2300 × 1000/1100 mm, cab seating capacity is  2.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3206N3246A
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3206N3246A

Engine of the China dump truck Sida Steyr ZZ3206N3246A

Engine Specifications of the China dump truck
Engine ModelWD615.69
Engine displacement (cc)9726
Engine power (kW (hp))247 (336)

Dimensions and Weights of the China dump truck Sida Steyr ZZ3206N3246A

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)7994/7665/7555
Overall width (mm)2496
Overall height (mm)3270
Cargo Body Dimensions
Cargo body length (mm)5400/5100/4800
Cargo body width (mm)2300
Cargo body height (mm)1000/1100
Weights, Ground Pressure
Curb weight of the China dump truck (kg)9910
Gross vehicle weight (kg)20000
Load factor (payload to weight ratio)1.01
Axle load distribution (kg)6000/14000  (tandem axle)
Wheel Base
Wheelbase (mm)3225+1350
Front/rear overhang (mm)1560/1859, 1560/1520, 1560/1420
Angle of approach/departure (deg.)20/25, 20/29, 20/30

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3206N3246A
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3206N3246A (dump truck)
Max. speed75
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car optional Steyr semi-high roof cab, corresponding car length 7555mm, cargo box length 4800mm, box height is 1100mm, rear overhang is 1420mm, departure angle of 30 degrees. The car optional environmental lidded container, box length is 5400mm and when 5100mm, high box only 1000mm. Vehicle length and box long rear overhang, departure angle correspondence.
(Note: possible inaccuracies)
