ZZ3201M3841A

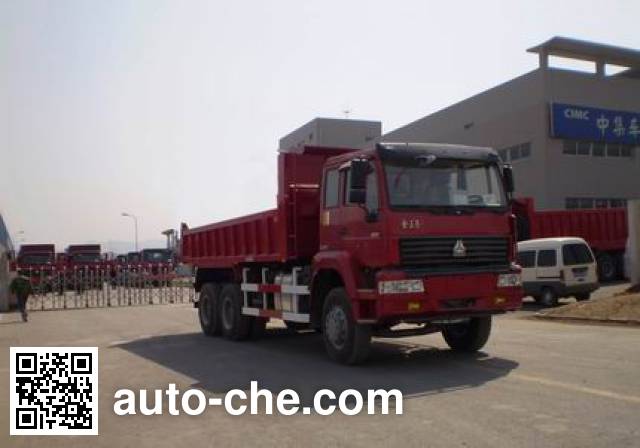

Sida Steyr Chinese dump truck (tipper truck) ZZ3201M3841A manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo Sida Steyr Sinotruk Sitrak Huanghe
Technical Specifications of the China dump truck Sida Steyr Vehicle Overview Engine of the China dump truck Sida Steyr ZZ3201M3841A Engine Specifications of the China dump truck Engine Model WD615.62 / WD615.87 Engine displacement (cc) 9726 / 9726 Engine power (kW) 196 / 213
Dimensions and Weights of the China dump truck Sida Steyr ZZ3201M3841A Dimensions and Weight Specifications of the China dump truck Overall Dimensions of the China dump truck Overall length (mm) 8400 Overall width (mm) 2490 Overall height (mm) 3250 Cargo Body Dimensions Cargo body length (mm) 6000 Cargo body width (mm) 2300 Cargo body height (mm) 900 Weights, Ground Pressure Curb weight of the China dump truck (kg) 9980 Gross vehicle weight (kg) 20000 Load factor (payload to weight ratio) 1.00 Axle load distribution (kg) 6000/14000 (tandem axle) Wheel Base Wheelbase (mm) 3750+1350 Front and Rear Overhang Front overhang (mm) 1320 Rear overhang (mm) 1980 Angle of Approach and Departure Angle of approach (deg.) 20.5 Angle of departure (deg.) 25
Wheels and Tires Tires and Wheels of the China dump truck Sida Steyr ZZ3201M3841A Number of axles 3
Misc. Specifications Miscellaneous Specifications Sida Steyr ZZ3201M3841A (dump truck) Max. speed 75 Cab seating capacity 2 Steering steering wheel
