steyr tipper / dump truck

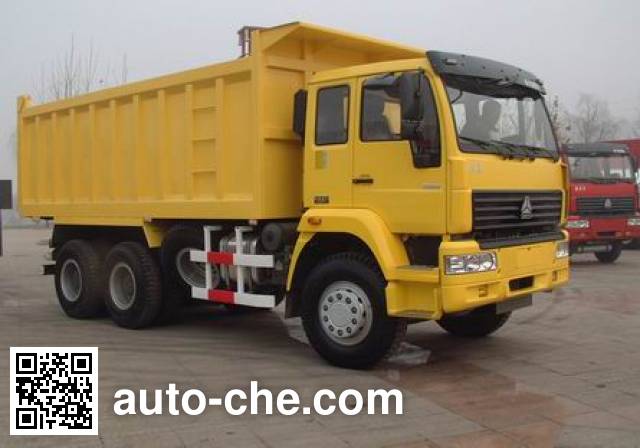

Sida Steyr ZZ3201M3641W dump truck manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

Sida Steyr dump truck ZZ3201M3641W

ZZ3201M3641W

Sida Steyr Chinese dump truck (tipper truck) ZZ3201M3641W manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of , , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3201M3641W chassis. Gross vehicle weight is 20000 kg, engine: WD615.62 / WD615.87, wheelbase is 3600+1350 mm, max. speed is 67, 75 km/h, cab seating capacity is  2, cargo body is 5600 × 2300 × 1200 mm, curb weight is of the China dump truck 9890 kg.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3201M3641W
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3201M3641W

Engine of the China dump truck Sida Steyr ZZ3201M3641W

Engine Specifications of the China dump truck
Engine ModelWD615.62 / WD615.87
Engine displacement (cc)9726 / 9726
Engine power (kW)196 / 213

Dimensions and Weights of the China dump truck Sida Steyr ZZ3201M3641W

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)8000
Overall width (mm)2490
Overall height (mm)3250
Cargo Body Dimensions
Cargo body length (mm)5600
Cargo body width (mm)2300
Cargo body height (mm)1200
Weights, Ground Pressure
Curb weight of the China dump truck (kg)9890
Gross vehicle weight (kg)20000
Load factor (payload to weight ratio)1.02
Axle load distribution (kg)6000/14000  (tandem axle)
Wheel Base
Wheelbase (mm)3600+1350
Front and Rear Overhang
Front overhang (mm)1320
Rear overhang (mm)1730
Angle of Approach and Departure
Angle of approach (deg.)20.5
Angle of departure (deg.)25

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3201M3641W
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3201M3641W (dump truck)
Max. speed67, 75
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car optional green container with lid, cover the quality of 290kg.
(Note: possible inaccuracies)
