ZZ3201M3641C1
Sida Steyr Chinese dump truck (tipper truck) ZZ3201M3641C1 manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo Sida Steyr Sinotruk Sitrak Huanghe
Technical Specifications of the China dump truck Sida Steyr Vehicle Overview Engine of the China dump truck Sida Steyr ZZ3201M3641C1 # Engine Model Engine Displacement Engine Power Engine Manufacturer 1 WD615.92 9726 cc 196 kW (267 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 2 WD615.93 9726 cc 213 kW (290 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 3 WD615.92E 9726 cc 196 kW (267 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 4 WD615.93E 9726 cc 213 kW (290 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 5 WD615.92C 9726 cc 198 kW (270 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 6 WD615.93C 9726 cc 213 kW (290 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 7 WD615.97E 9726 cc 221 kW (301 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 8 WD615.97C 9726 cc 221 kW (301 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
General Engine Specifications Fuel diesel fuel Environmental standards compliance National III / Euro 3
Dimensions and Weights of the China dump truck Sida Steyr ZZ3201M3641C1 Dimensions and Weight Specifications of the China dump truck Overall Dimensions of the China dump truck Overall length (mm) 8000 Overall width (mm) 2490 Overall height (mm) 3250/3450 Cargo Body Dimensions Cargo body length (mm) 5600 Cargo body width (mm) 900 Cargo body height (mm) 2300 Weights, Ground Pressure and Capacity Rated capacity (kg) 9870 Curb weight of the China dump truck (kg) 10000 Gross vehicle weight (kg) 20000 Load factor (payload to weight ratio) 1.00 Axle load distribution (kg) 6000/14000 (tandem axle) Wheel Base and Track Wheelbase (mm) 3600+1350 Front track (mm) 2047, 1995 Rear track (mm) 1820/1820, 1850/1850 Front and Rear Overhang Front overhang (mm) 1320 Rear overhang (mm) 1730 Angle of Approach and Departure Angle of approach (deg.) 20.5 Angle of departure (deg.) 25
Wheels and Tires Tires and Wheels of the China dump truck Sida Steyr ZZ3201M3641C1 Number of axles 3 Number of tires 10 Tires dimension 11.00-20 14PR, 11.00R20 14PR
Misc. Specifications Miscellaneous Specifications Sida Steyr ZZ3201M3641C1 (dump truck) Max. speed 75 ABS none Cab seating capacity 2 Steering steering wheel Leaf springs 12 / 12, 10 / 12, 10 / -

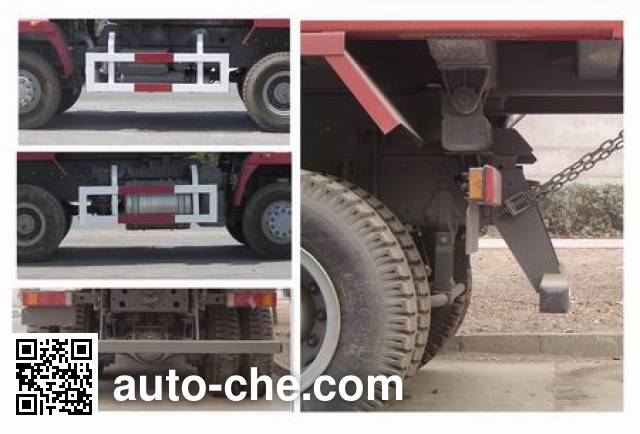

Additional Information Container dump mode after unloading.When container lifting way before the move, the vehicle height 3450mm. The new car is optional mask. Materials used side guards Material: Q235A, connection bolt connection. The rear guard of the materials used Material: Q235A, connection to bolt connection, cross section size is 100 × 100mm, ground clearance is 530mm. Should be installed tachograph.(Note: possible inaccuracies)

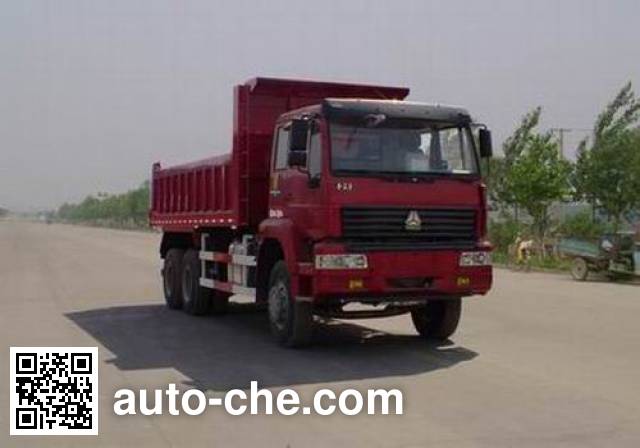

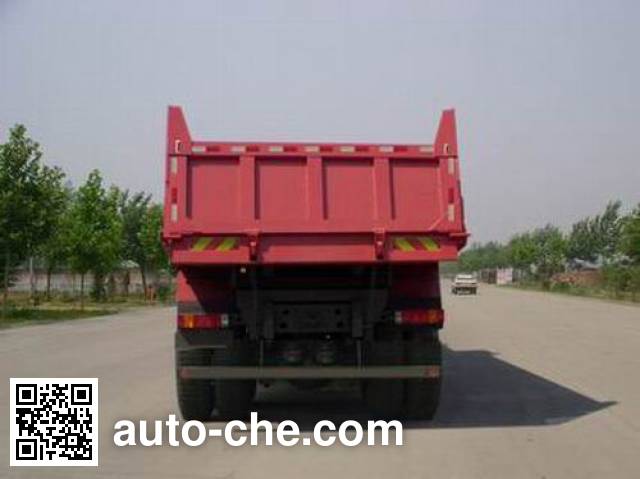

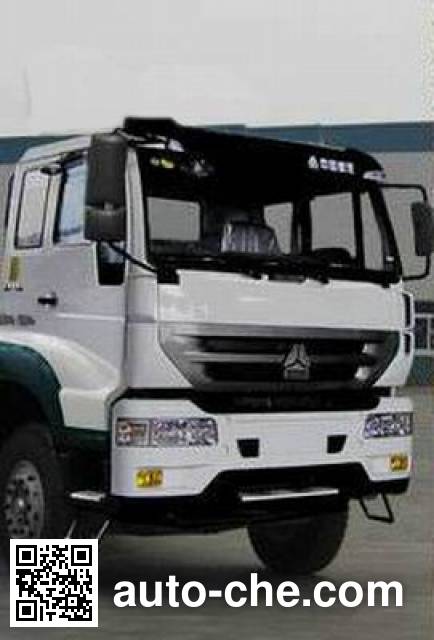

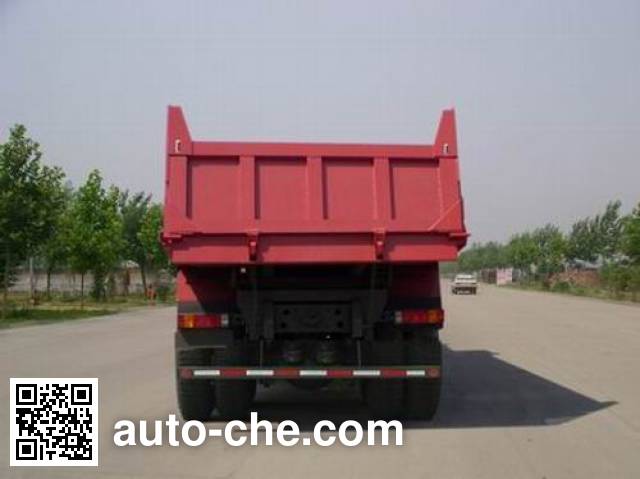

Photo gallery of the China dump truck Sida Steyr ZZ3201M3641C1 See Also Sida Steyr ZZ3161M4011D1 (dump truck)
