steyr tipper / dump truck

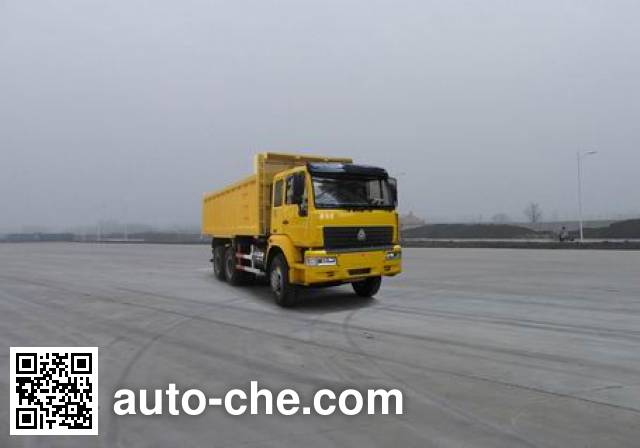

Sida Steyr ZZ3201M2941W dump truck manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

Sida Steyr dump truck ZZ3201M2941W

ZZ3201M2941W

Sida Steyr Chinese dump truck (tipper truck) ZZ3201M2941W manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of , , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3201M2941W chassis. Engine: WD615.62 / WD615.87, wheelbase is 2925+1350 mm, curb weight is of the China dump truck 9920 kg, cab seating capacity is  2, max. speed is 67, 75 km/h, gross vehicle weight is 20000 kg, cargo body is 4600 × 2300 × 1100/1000 mm.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3201M2941W
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3201M2941W

Engine of the China dump truck Sida Steyr ZZ3201M2941W

Engine Specifications of the China dump truck
Engine ModelWD615.62 / WD615.87
Engine displacement (cc)9726 / 9726
Engine power (kW)196 / 213

Dimensions and Weights of the China dump truck Sida Steyr ZZ3201M2941W

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)7125
Overall width (mm)2490
Overall height (mm)3250
Cargo Body Dimensions
Cargo body length (mm)4600
Cargo body width (mm)2300
Cargo body height (mm)1100/1000
Weights, Ground Pressure
Curb weight of the China dump truck (kg)9920
Gross vehicle weight (kg)20000
Load factor (payload to weight ratio)1.01
Axle load distribution (kg)6000/14000  (tandem axle)
Wheel Base
Wheelbase (mm)2925+1350
Front and Rear Overhang
Front overhang (mm)1320
Rear overhang (mm)1530
Angle of Approach and Departure
Angle of approach (deg.)20.5
Angle of departure (deg.)28

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3201M2941W
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3201M2941W (dump truck)
Max. speed67, 75
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car optional green container with lid, cover the quality of 250kg.Curb weight changes brought container height is negligible.
(Note: possible inaccuracies)
