steyr tipper / dump truck

Sida Steyr ZZ3201M2941C2 dump truck manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

Sida Steyr dump truck ZZ3201M2941C2

ZZ3201M2941C2

Sida Steyr Chinese dump truck (tipper truck) ZZ3201M2941C2 manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of , , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3201M2941C2 chassis. Max. speed is 75 km/h, curb weight is of the China dump truck 9880 kg, environmental standard is National III / Euro 3, cab seating capacity is  2, tires are 11.00-20 14PR, 11.00R20 14PR, wheelbase is 2925+1350 mm, without ABS, cargo body is 4600 × 1100 × 2300 mm, engine: WD615.92 / WD615.93 / WD615.92C / WD615.93C / WD615.97C / WD615.97E, rated capacity is 9990 kg, gross vehicle weight is 20000 kg, diesel fuel.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3201M2941C2
Vehicle typeDump truck (tipper truck)
VIN
  • LZZAEJMA×××××××××
  • LZZAEJNA×××××××××
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3201M2941C2

Engine of the China dump truck Sida Steyr ZZ3201M2941C2

#Engine ModelEngine DisplacementEngine PowerEngine Manufacturer
1WD615.929726 cc196 kW (267 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
2WD615.939726 cc213 kW (290 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
3WD615.92C9726 cc198 kW (270 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
4WD615.93C9726 cc213 kW (290 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
5WD615.97C9726 cc221 kW (301 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
6WD615.97E9726 cc221 kW (301 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
General Engine Specifications
Fueldiesel fuel
Environmental standards complianceNational III / Euro 3

Dimensions and Weights of the China dump truck Sida Steyr ZZ3201M2941C2

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)7125
Overall width (mm)2490
Overall height (mm)3250
Cargo Body Dimensions
Cargo body length (mm)4600
Cargo body width (mm)1100
Cargo body height (mm)2300
Weights, Ground Pressure and Capacity
Rated capacity (kg)9990
Curb weight of the China dump truck (kg)9880
Gross vehicle weight (kg)20000
Load factor (payload to weight ratio)1.02
Axle load distribution (kg)6000/14000  (tandem axle)
Wheel Base and Track
Wheelbase (mm)2925+1350
Front track (mm)2047, 1995
Rear track (mm)1820/1820, 1850/1850
Front and Rear Overhang
Front overhang (mm)1320
Rear overhang (mm)1530
Angle of Approach and Departure
Angle of approach (deg.)20.5
Angle of departure (deg.)28

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3201M2941C2
Number of axles3
Number of tires10
Tires dimension11.00-20 14PR, 11.00R20 14PR

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3201M2941C2 (dump truck)
Max. speed75
ABSnone
Cab seating capacity2
Steeringsteering wheel
Leaf springs12 / 12, 10 / -

Additional Information

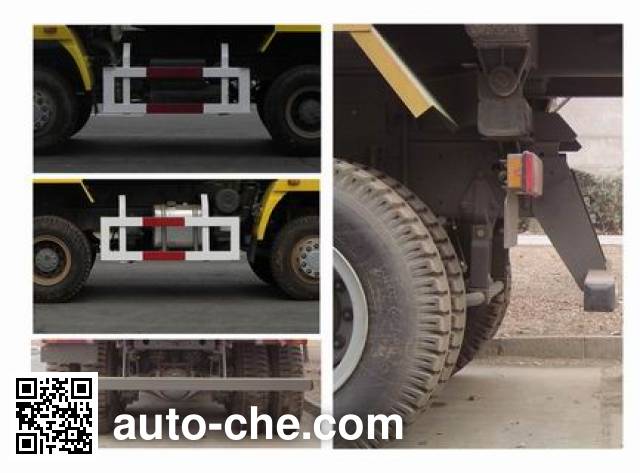

Container dump mode after unloading. The new car is optional mask. Materials used side guards Material: Q235A, connection bolt connection. The rear guard of the materials used Material: Q235A, connection to bolt connection, cross section size is 100 × 100mm, ground clearance is 530mm. Should be installed tachograph.
(Note: possible inaccuracies)

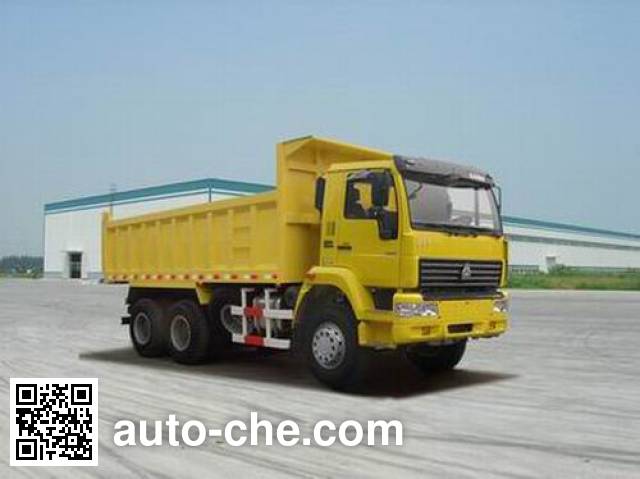

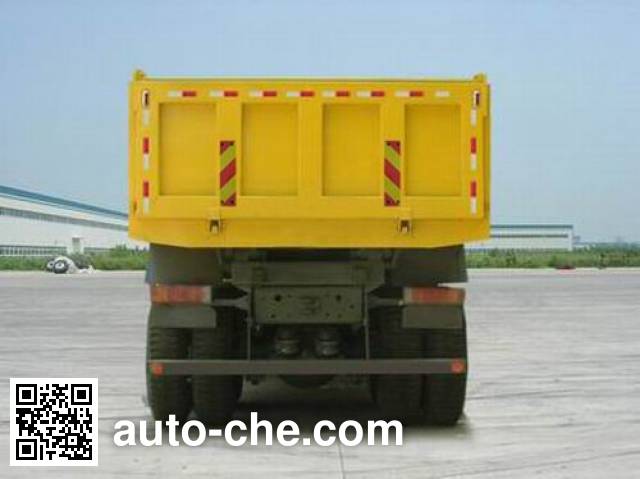

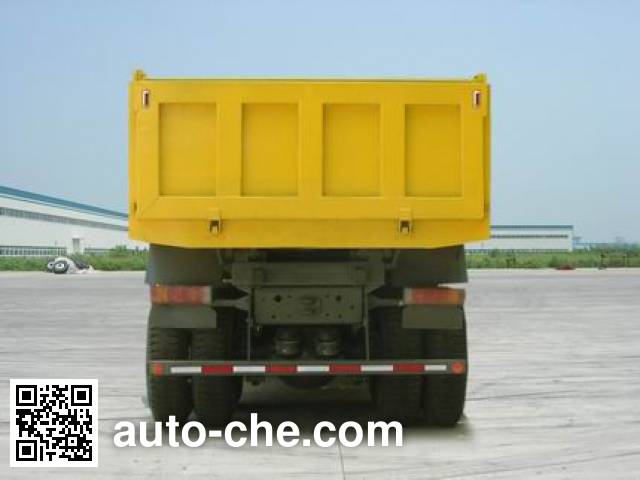

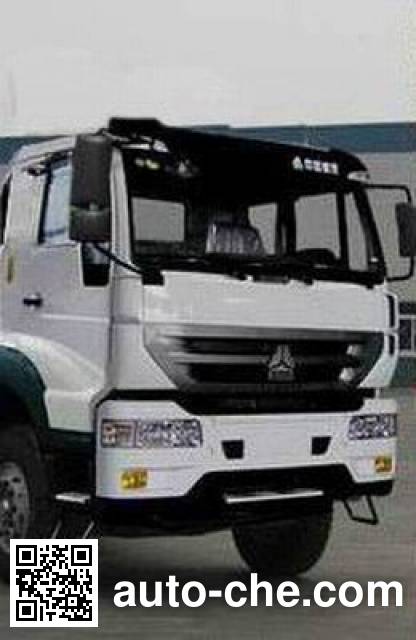

Photo gallery of the China dump truck Sida Steyr ZZ3201M2941C2

Sida Steyr dump truck ZZ3201M2941C2 Sida Steyr dump truck ZZ3201M2941C2 Sida Steyr dump truck ZZ3201M2941C2 Sida Steyr dump truck ZZ3201M2941C2 Sida Steyr dump truck ZZ3201M2941C2
