steyr tipper / dump truck

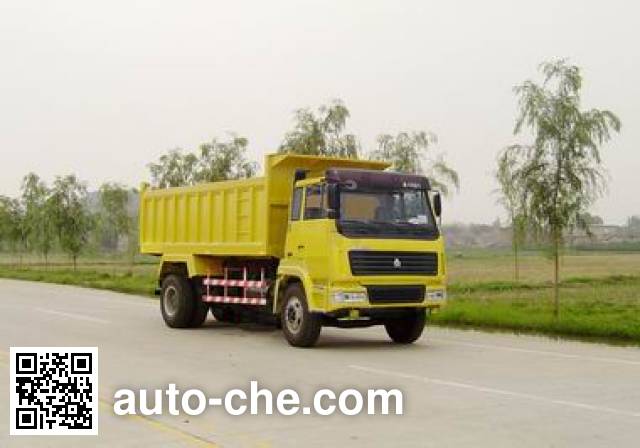

Sida Steyr ZZ3166M4616 dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sida Steyr dump truck ZZ3166M4616

ZZ3166M4616

Sida Steyr Chinese dump truck (tipper truck) ZZ3166M4616 manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3166M4616 chassis. Wheelbase is 4600 mm, cab seating capacity is  2, gross vehicle weight is 16000 kg, curb weight is of the China dump truck 8000 kg, max. speed is 75 km/h, cargo body is 5410 × 2300 × 600 mm, engine: WD615.61A / WD615.61A / WD615.67 / WD615.67 / WD615.62 / WD615.62 / WD615.87 / WD615.87.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3166M4616
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3166M4616

Engine of the China dump truck Sida Steyr ZZ3166M4616

Engine Specifications of the China dump truck
Engine ModelWD615.61A / WD615.61A / WD615.67 / WD615.67 / WD615.62 / WD615.62 / WD615.87 / WD615.87
Engine displacement (cc)9726 / 9726 / 9726 / 9726 / 9726 / 9726 / 9726 / 9726
Engine power (kW)193 / 193 / 206 / 206 / 196 / 196 / 213 / 213

Dimensions and Weights of the China dump truck Sida Steyr ZZ3166M4616

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)8187
Overall width (mm)2496
Overall height (mm)3270
Cargo Body Dimensions
Cargo body length (mm)5410
Cargo body width (mm)2300
Cargo body height (mm)600
Weights, Ground Pressure
Curb weight of the China dump truck (kg)8000
Gross vehicle weight (kg)16000
Load factor (payload to weight ratio)1.00
Axle load distribution (kg)6000/10000  (tandem axle)
Wheel Base
Wheelbase (mm)4600
Front and Rear Overhang
Front overhang (mm)1560
Rear overhang (mm)2027
Angle of Approach and Departure
Angle of approach (deg.)20
Angle of departure (deg.)23

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3166M4616
Number of axles2

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3166M4616 (dump truck)
Max. speed75
Cab seating capacity2
Steeringsteering wheel

Additional Information

Only two types of optional car chassis WD615.62 and WD615.87 engine, while optional green container with lid, cover the quality of 280kg.
(Note: possible inaccuracies)
