ZZ3161M4711

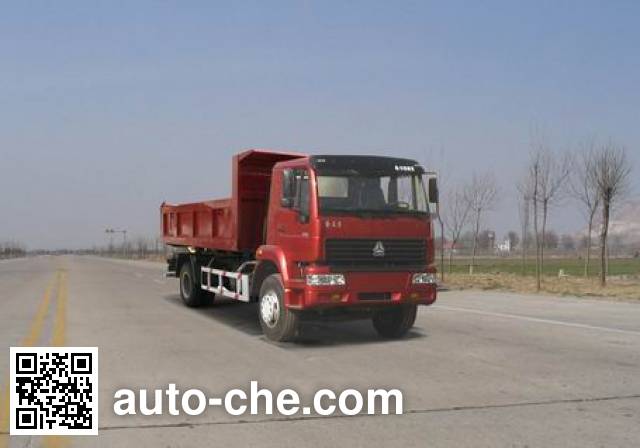

Sida Steyr Chinese dump truck (tipper truck) ZZ3161M4711 manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo Sida Steyr Sinotruk Sitrak Huanghe
Technical Specifications of the China dump truck Sida Steyr Vehicle Overview Engine of the China dump truck Sida Steyr ZZ3161M4711 Engine Specifications of the China dump truck Engine Model WD615.62 / WD615.87 Engine displacement (cc) 9726 / 9726 Engine power (kW) 196 / 213
Dimensions and Weights of the China dump truck Sida Steyr ZZ3161M4711 Dimensions and Weight Specifications of the China dump truck Overall Dimensions of the China dump truck Overall length (mm) 7980 Overall width (mm) 2490 Overall height (mm) 3140 Cargo Body Dimensions Cargo body length (mm) 5700 Cargo body width (mm) 2300 Cargo body height (mm) 800 Weights, Ground Pressure Curb weight of the China dump truck (kg) 7980 Gross vehicle weight (kg) 16000 Load factor (payload to weight ratio) 1.01 Axle load distribution (kg) 6000/10000 Wheel Base Wheelbase (mm) 4700 Front and Rear Overhang Front overhang (mm) 1320 Rear overhang (mm) 1960 Angle of Approach and Departure Angle of approach (deg.) 20.5 Angle of departure (deg.) 27
Wheels and Tires Tires and Wheels of the China dump truck Sida Steyr ZZ3161M4711 Number of axles 2
Misc. Specifications Miscellaneous Specifications Sida Steyr ZZ3161M4711 (dump truck) Max. speed 80 Cab seating capacity 2 Steering steering wheel
Additional Information The car optional green container with lid, cover the quality of 310kg.(Note: possible inaccuracies)
