steyr tipper / dump truck

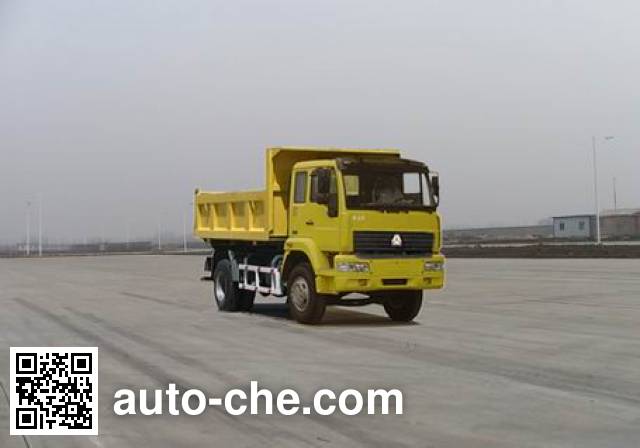

Sida Steyr ZZ3161M4011W dump truck manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

Sida Steyr dump truck ZZ3161M4011W

ZZ3161M4011W

Sida Steyr Chinese dump truck (tipper truck) ZZ3161M4011W manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of , , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3161M4011W chassis. Cab seating capacity is  2, max. speed is 80 km/h, cargo body is 4600 × 2300 × 800 mm, curb weight is of the China dump truck 7720 kg, gross vehicle weight is 16000 kg, wheelbase is 4000 mm, engine: WD615.62 / WD615.87.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3161M4011W
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3161M4011W

Engine of the China dump truck Sida Steyr ZZ3161M4011W

Engine Specifications of the China dump truck
Engine ModelWD615.62 / WD615.87
Engine displacement (cc)9726 / 9726
Engine power (kW)196 / 213

Dimensions and Weights of the China dump truck Sida Steyr ZZ3161M4011W

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)6980
Overall width (mm)2490
Overall height (mm)3140
Cargo Body Dimensions
Cargo body length (mm)4600
Cargo body width (mm)2300
Cargo body height (mm)800
Weights, Ground Pressure
Curb weight of the China dump truck (kg)7720
Gross vehicle weight (kg)16000
Load factor (payload to weight ratio)1.07
Axle load distribution (kg)6000/10000
Wheel Base
Wheelbase (mm)4000
Front and Rear Overhang
Front overhang (mm)1320
Rear overhang (mm)1660
Angle of Approach and Departure
Angle of approach (deg.)20.5
Angle of departure (deg.)34

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3161M4011W
Number of axles2

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3161M4011W (dump truck)
Max. speed80
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car optional green container with lid, cover the quality of 250kg.
(Note: possible inaccuracies)
