Howo, Sitrak, CNHTC, Hania, Homan dump trucks, tractors and cargo trucks (China). Unofficial reference guide

sinotruk cargo truck

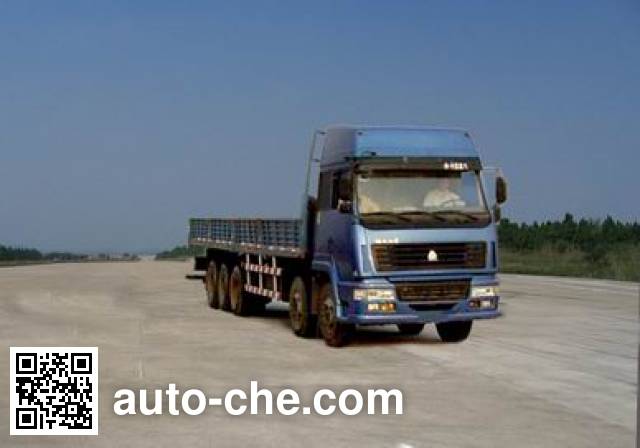

Sida Steyr ZZ1426N40B6V cargo truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sida Steyr cargo truck ZZ1426N40B6V

ZZ1426N40B6V

Sida Steyr Chinese cargo truck ZZ1426N40B6V manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including cargo trucks); the cargo truck based on ZZ1426N40B6V chassis. Max. speed is 90 km/h, curb weight is of the China truck 14170, 14310 kg, gross vehicle weight is 42500 kg, engine: WD615.69, wheelbase is 1800+4000+1350+1350 mm, cargo body is 9450 × 2326 × 600/800 mm, cab seating capacity is  2.

Technical Specifications of the China truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ1426N40B6V
Vehicle typeCargo truck
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ1426N40B6V

Engine of the China truck Sida Steyr ZZ1426N40B6V

Engine Specifications of the China truck
Engine ModelWD615.69
Engine displacement (cc)9726
Engine power (kW (hp))247 (336)

Dimensions and Weights of the China truck Sida Steyr ZZ1426N40B6V

Dimensions and Weight Specifications of the China truck
Overall Dimensions of the China truck
Overall length (mm)11984
Overall width (mm)2496
Overall height (mm)3715
Cargo Body Dimensions
Cargo body length (mm)9450
Cargo body width (mm)2326
Cargo body height (mm)600/800
Weights, Ground Pressure
Curb weight of the China truck (kg)14170, 14310
Gross vehicle weight (kg)42500
Load factor (payload to weight ratio)1.97
Axle load distribution (kg)6500/7000/18000  (tandem axle) /11000
Wheel Base
Wheelbase (mm)1800+4000+1350+1350
Front and Rear Overhang
Front overhang (mm)1560
Rear overhang (mm)1924
Angle of Approach and Departure
Angle of approach (deg.)15
Angle of departure (deg.)24

Wheels and Tires

Tires and Wheels of the China truck Sida Steyr ZZ1426N40B6V
Number of axles5

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ1426N40B6V (cargo truck)
Max. speed90
Cab seating capacity2
Steeringsteering wheel
