Howo, Sitrak, CNHTC, Hania, Homan dump trucks, tractors and cargo trucks (China). Unofficial reference guide

sinotruk cargo truck

Sida Steyr ZZ1316M4669V cargo truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sida Steyr cargo truck ZZ1316M4669V

ZZ1316M4669V

Sida Steyr Chinese cargo truck ZZ1316M4669V manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including cargo trucks); the cargo truck based on ZZ1316M4669V chassis. Rated capacity is 17520, 17380 kg, gross vehicle weight is 31000 kg, max. speed is 90 km/h, wheelbase is 1800+4600+1350 mm, engine: WD615.92 / WD615.93 / WD615.92E / WD615.93E / WD615.97C / WD615.97E / WD615.92C / WD615.93C, environmental standard is National III / Euro 3, cargo body is 9450 × 600/800 × 2326 mm, diesel fuel, curb weight is of the China truck 13350, 13490 kg, cab seating capacity is  2, tires are 11.00-20, 12.00-20, without ABS.

Technical Specifications of the China truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ1316M4669V
Vehicle typeCargo truck
VIN
  • LZZABXMF×××××××××
  • LZZABXNF×××××××××
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ1316M4669V

Engine of the China truck Sida Steyr ZZ1316M4669V

#Engine ModelEngine DisplacementEngine PowerEngine Manufacturer
1WD615.929726 cc196 kW (267 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
2WD615.939726 cc213 kW (290 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
3WD615.92E9726 cc196 kW (267 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
4WD615.93E9726 cc213 kW (290 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
5WD615.97C9726 cc221 kW (301 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
6WD615.97E9726 cc221 kW (301 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
7WD615.92C9726 cc198 kW (270 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
8WD615.93C9726 cc213 kW (290 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
General Engine Specifications
Fueldiesel fuel
Environmental standards complianceNational III / Euro 3

Dimensions and Weights of the China truck Sida Steyr ZZ1316M4669V

Dimensions and Weight Specifications of the China truck
Overall Dimensions of the China truck
Overall length (mm)11984
Overall width (mm)2496
Overall height (mm)3715
Cargo Body Dimensions
Cargo body length (mm)9450
Cargo body width (mm)600/800
Cargo body height (mm)2326
Weights, Ground Pressure and Capacity
Rated capacity (kg)17520, 17380
Curb weight of the China truck (kg)13350, 13490
Gross vehicle weight (kg)31000
Load factor (payload to weight ratio)1.32, 1.30
Axle load distribution (kg)6500/7000/17500  (tandem axle)
Wheel Base and Track
Wheelbase (mm)1800+4600+1350
Front track (mm)1939/1939, 1958/1958
Rear track (mm)1800/1800, 1830/1830
Front and Rear Overhang
Front overhang (mm)1560
Rear overhang (mm)2674
Angle of Approach and Departure
Angle of approach (deg.)15
Angle of departure (deg.)15

Wheels and Tires

Tires and Wheels of the China truck Sida Steyr ZZ1316M4669V
Number of axles4
Number of tires12
Tires dimension11.00-20, 12.00-20

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ1316M4669V (cargo truck)
Max. speed90
ABSnone
Cab seating capacity2
Steeringsteering wheel
Leaf springs left 14 right 13 / left 14 right 13 / 12, 4 / 4 / -, 11 / 11 / 12, 11 / 11 / -

Additional Information

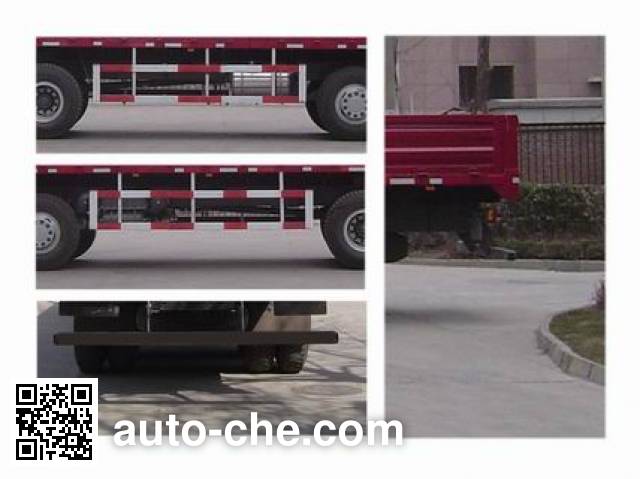

Side guards made of material used Q235A, bolted connection is; rear protective device made of materials used Q235A, as bolted connections, cross-sectional dimensions of 100mm × 100mm, ground clearance is 530mm. Should be installed tachograph.
(Note: possible inaccuracies)

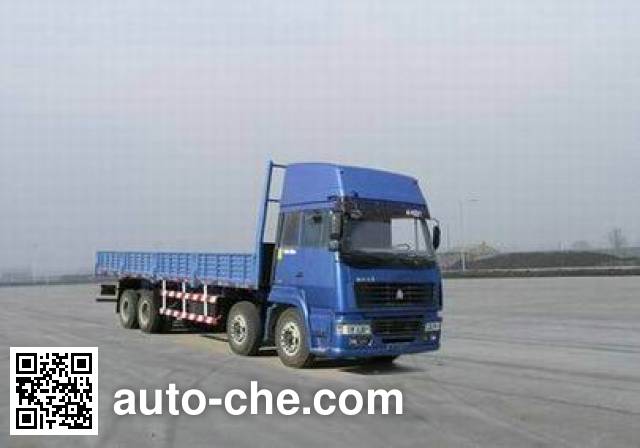

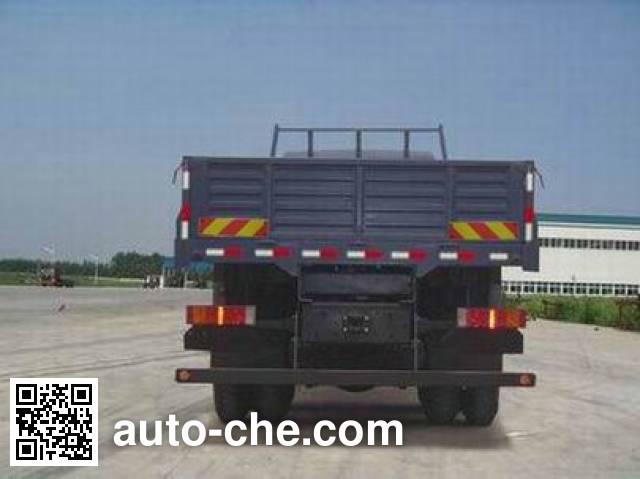

Photo gallery of the China truck Sida Steyr ZZ1316M4669V

Sida Steyr cargo truck ZZ1316M4669V Sida Steyr cargo truck ZZ1316M4669V Sida Steyr cargo truck ZZ1316M4669V
