sinotruk cargo truck

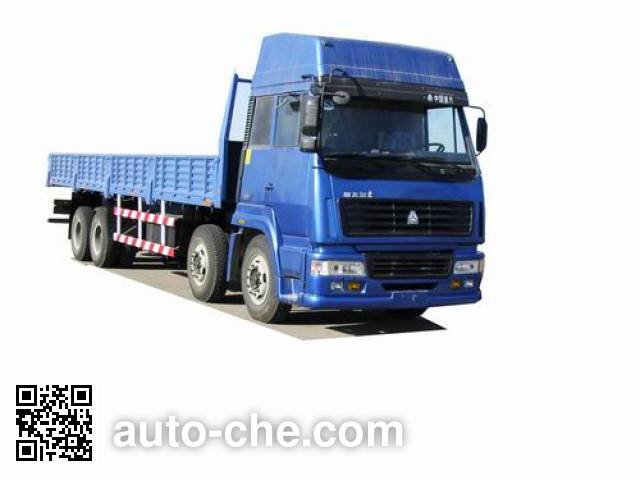

Sida Steyr ZZ1312M4666V cargo truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sida Steyr cargo truck ZZ1312M4666V

ZZ1312M4666V

Sida Steyr Chinese cargo truck ZZ1312M4666V manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including cargo trucks); the cargo truck based on ZZ1312M4666V chassis. Cargo body is 9400 × 2326 × 550/800 mm, max. speed is 93 km/h, cab seating capacity is  3, engine: WD615.62 / WD615.87, gross vehicle weight is 31000 kg, wheelbase is 1800+4600+1350 mm, curb weight is of the China truck 12625-13025 kg.

Technical Specifications of the China truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ1312M4666V
Vehicle typeCargo truck
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ1312M4666V

Engine of the China truck Sida Steyr ZZ1312M4666V

Engine Specifications of the China truck
Engine ModelWD615.62 / WD615.87
Engine displacement (cc)9726 / 9726
Engine power (kW)196 / 213

Dimensions and Weights of the China truck Sida Steyr ZZ1312M4666V

Dimensions and Weight Specifications of the China truck
Overall Dimensions of the China truck
Overall length (mm)11984
Overall width (mm)2496
Overall height (mm)3600
Cargo Body Dimensions
Cargo body length (mm)9400
Cargo body width (mm)2326
Cargo body height (mm)550/800
Weights
Curb weight of the China truck (kg)12625-13025
Gross vehicle weight (kg)31000
Load factor (payload to weight ratio)1.38
Wheel Base
Wheelbase (mm)1800+4600+1350
Front and Rear Overhang
Front overhang (mm)1560
Rear overhang (mm)2674
Angle of Approach and Departure
Angle of approach (deg.)15
Angle of departure (deg.)17

Wheels and Tires

Tires and Wheels of the China truck Sida Steyr ZZ1312M4666V
Number of axles4

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ1312M4666V (cargo truck)
Max. speed93
Cab seating capacity3
Steeringsteering wheel

Additional Information

The reflective marking should be installed at the side and rear of vehicle body.
(Note: possible inaccuracies)
