sinotruk cargo truck

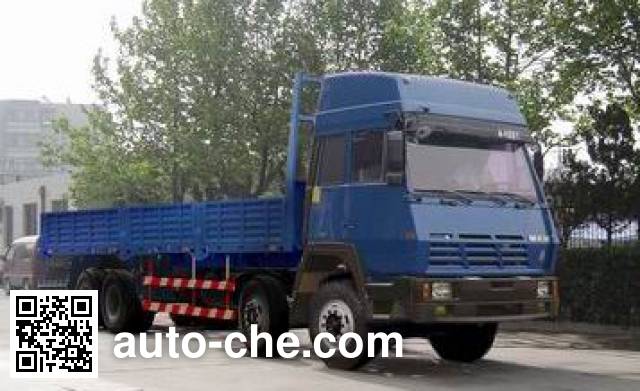

Sida Steyr ZZ1312M4660V cargo truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sida Steyr cargo truck ZZ1312M4660V

ZZ1312M4660V

Sida Steyr Chinese cargo truck ZZ1312M4660V manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including cargo trucks); the cargo truck based on ZZ1312M4660V chassis. Max. speed is 90 km/h, curb weight is of the China truck 13350, 13490 kg, wheelbase is 1800+4600+1350 mm, cargo body is 9450 × 2326 × 600/800 mm, gross vehicle weight is 31000 kg, cab seating capacity is  2, engine: WD615.61A / WD615.61A / WD615.62 / WD615.62 / WD615.67 / WD615.67 / WD615.87 / WD615.87.

Technical Specifications of the China truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ1312M4660V
Vehicle typeCargo truck
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ1312M4660V

Engine of the China truck Sida Steyr ZZ1312M4660V

Engine Specifications of the China truck
Engine ModelWD615.61A / WD615.61A / WD615.62 / WD615.62 / WD615.67 / WD615.67 / WD615.87 / WD615.87
Engine displacement (cc)9726 / 9726 / 9726 / 9726 / 9726 / 9726 / 9726 / 9726
Engine power (kW)193 / 193 / 196 / 196 / 206 / 206 / 213 / 213

Dimensions and Weights of the China truck Sida Steyr ZZ1312M4660V

Dimensions and Weight Specifications of the China truck
Overall Dimensions of the China truck
Overall length (mm)12000
Overall width (mm)2496
Overall height (mm)3715
Cargo Body Dimensions
Cargo body length (mm)9450
Cargo body width (mm)2326
Cargo body height (mm)600/800
Weights, Ground Pressure
Curb weight of the China truck (kg)13350, 13490
Gross vehicle weight (kg)31000
Load factor (payload to weight ratio)1.30
Axle load distribution (kg)6500/7000/17500  (tandem axle)
Wheel Base
Wheelbase (mm)1800+4600+1350
Front and Rear Overhang
Front overhang (mm)1576
Rear overhang (mm)2674
Angle of Approach and Departure
Angle of approach (deg.)18
Angle of departure (deg.)15

Wheels and Tires

Tires and Wheels of the China truck Sida Steyr ZZ1312M4660V
Number of axles4

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ1312M4660V (cargo truck)
Max. speed90
Cab seating capacity2
Steeringsteering wheel

Additional Information

The reflective marking should be installed at the side and rear of vehicle body.
(Note: possible inaccuracies)
