ZZ1266M4666V

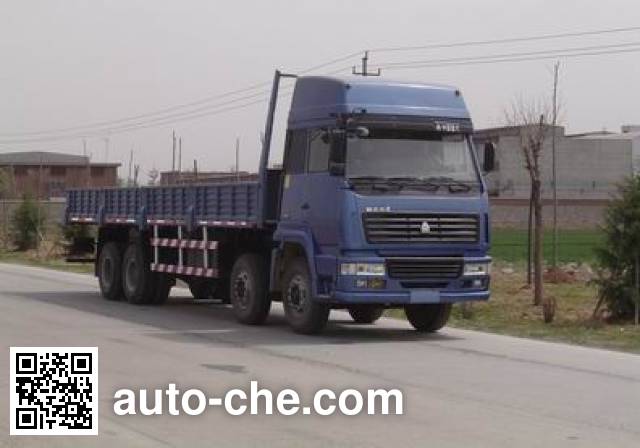

Sida Steyr Chinese cargo truck ZZ1266M4666V manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo Sida Steyr Sinotruk Sitrak
Technical Specifications of the China truck Sida Steyr Vehicle Overview Engine of the China truck Sida Steyr ZZ1266M4666V Engine Specifications of the China truck Engine Model WD615.62 / WD615.62 / WD615.87 / WD615.87 Engine displacement (cc) 9726 / 9726 / 9726 / 9726 Engine power (kW) 196 / 196 / 213 / 213
Dimensions and Weights of the China truck Sida Steyr ZZ1266M4666V Dimensions and Weight Specifications of the China truck Overall Dimensions of the China truck Overall length (mm) 11984 Overall width (mm) 2496 Overall height (mm) 3715 Cargo Body Dimensions Cargo body length (mm) 9450 Cargo body width (mm) 2326 Cargo body height (mm) 600/800 Weights, Ground Pressure Curb weight of the China truck (kg) 12870, 12970 Gross vehicle weight (kg) 26000 Load factor (payload to weight ratio) 1.01 Axle load distribution (kg) 5300/6000/14700 (tandem axle) Wheel Base Wheelbase (mm) 1800+4600+1350 Front and Rear Overhang Front overhang (mm) 1560 Rear overhang (mm) 2674 Angle of Approach and Departure Angle of approach (deg.) 15 Angle of departure (deg.) 15
Wheels and Tires Tires and Wheels of the China truck Sida Steyr ZZ1266M4666V Number of axles 4
Misc. Specifications Miscellaneous Specifications Sida Steyr ZZ1266M4666V (cargo truck) Max. speed 90 Cab seating capacity 2 Steering steering wheel
Additional Information Optional second-class car chassis 11.00-20 and 12.00-20 tires.(Note: possible inaccuracies)
