sinotruk cargo truck

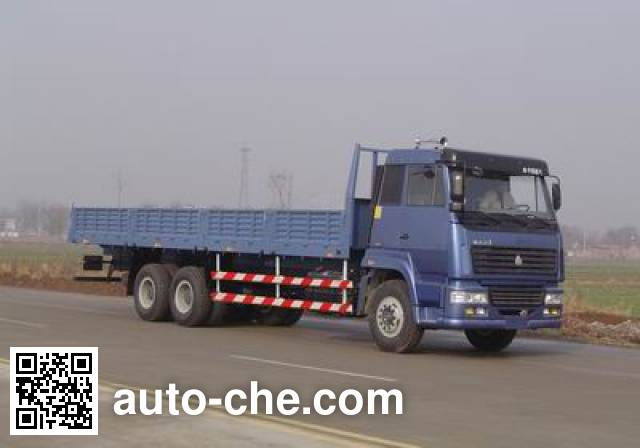

Sida Steyr ZZ1256M5236F cargo truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sida Steyr cargo truck ZZ1256M5236F

ZZ1256M5236F

Sida Steyr Chinese cargo truck ZZ1256M5236F manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including cargo trucks); the cargo truck based on ZZ1256M5236F chassis. Gross vehicle weight is 25000 kg, max. speed is 90 km/h, engine: WD615.61A / WD615.61A / WD615.67 / WD615.67 / WD615.62 / WD615.62 / WD615.87 / WD615.87, wheelbase is 5200+1365 mm, cab seating capacity is  2, curb weight is of the China truck 10950, 11080 kg, cargo body is 8550 × 2326 × 600/800 mm.

Technical Specifications of the China truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ1256M5236F
Vehicle typeCargo truck
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ1256M5236F

Engine of the China truck Sida Steyr ZZ1256M5236F

Engine Specifications of the China truck
Engine ModelWD615.61A / WD615.61A / WD615.67 / WD615.67 / WD615.62 / WD615.62 / WD615.87 / WD615.87
Engine displacement (cc)9726 / 9726 / 9726 / 9726 / 9726 / 9726 / 9726 / 9726
Engine power (kW)193 / 193 / 206 / 206 / 196 / 196 / 213 / 213

Dimensions and Weights of the China truck Sida Steyr ZZ1256M5236F

Dimensions and Weight Specifications of the China truck
Overall Dimensions of the China truck
Overall length (mm)11084
Overall width (mm)2496
Overall height (mm)3188
Cargo Body Dimensions
Cargo body length (mm)8550
Cargo body width (mm)2326
Cargo body height (mm)600/800
Weights
Curb weight of the China truck (kg)10950, 11080
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.26
Wheel Base
Wheelbase (mm)5200+1365
Front and Rear Overhang
Front overhang (mm)1560
Rear overhang (mm)2959
Angle of Approach and Departure
Angle of approach (deg.)15
Angle of departure (deg.)16

Wheels and Tires

Tires and Wheels of the China truck Sida Steyr ZZ1256M5236F
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ1256M5236F (cargo truck)
Max. speed90
Cab seating capacity2
Steeringsteering wheel

Additional Information

This product since October 1, 2004, as a vehicle registered products should be installed according to the vehicle body reflective logo on the side and rear.
(Note: possible inaccuracies)
