sinotruk cargo truck

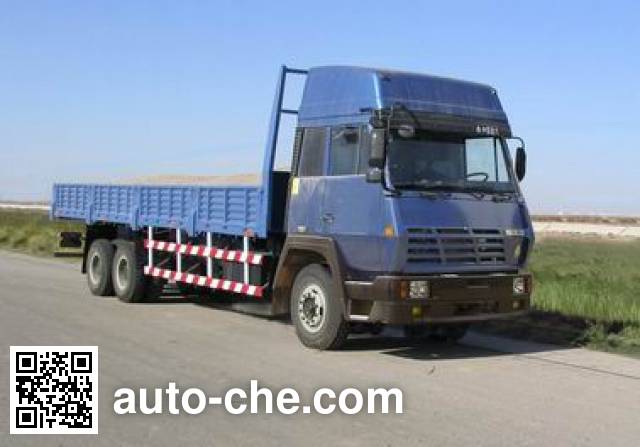

Sida Steyr ZZ1252M5630V cargo truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sida Steyr cargo truck ZZ1252M5630V

ZZ1252M5630V

Sida Steyr Chinese cargo truck ZZ1252M5630V manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including cargo trucks); the cargo truck based on ZZ1252M5630V chassis. Cab seating capacity is  2, cargo body is 9400 × 2326 × 600/800 mm, curb weight is of the China truck 11280, 11420 kg, wheelbase is 5600+1365 mm, max. speed is 90 km/h, engine: WD615.61A / WD615.61A / WD615.62 / WD615.62 / WD615.67 / WD615.67 / WD615.87 / WD615.87, gross vehicle weight is 25000 kg.

Technical Specifications of the China truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ1252M5630V
Vehicle typeCargo truck
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ1252M5630V

Engine of the China truck Sida Steyr ZZ1252M5630V

Engine Specifications of the China truck
Engine ModelWD615.61A / WD615.61A / WD615.62 / WD615.62 / WD615.67 / WD615.67 / WD615.87 / WD615.87
Engine displacement (cc)9726 / 9726 / 9726 / 9726 / 9726 / 9726 / 9726 / 9726
Engine power (kW)193 / 193 / 196 / 196 / 206 / 206 / 213 / 213

Dimensions and Weights of the China truck Sida Steyr ZZ1252M5630V

Dimensions and Weight Specifications of the China truck
Overall Dimensions of the China truck
Overall length (mm)11963
Overall width (mm)2496
Overall height (mm)3670
Cargo Body Dimensions
Cargo body length (mm)9400
Cargo body width (mm)2326
Cargo body height (mm)600/800
Weights, Ground Pressure
Curb weight of the China truck (kg)11280, 11420
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.19
Axle load distribution (kg)7000/11000/7000
Wheel Base
Wheelbase (mm)5600+1365
Front and Rear Overhang
Front overhang (mm)1576
Rear overhang (mm)3422
Angle of Approach and Departure
Angle of approach (deg.)18
Angle of departure (deg.)10

Wheels and Tires

Tires and Wheels of the China truck Sida Steyr ZZ1252M5630V
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ1252M5630V (cargo truck)
Max. speed90
Cab seating capacity2
Steeringsteering wheel

Additional Information

The reflective marking should be installed at the side and rear of vehicle body.
(Note: possible inaccuracies)
