Howo, Sitrak, CNHTC, Hania, Homan dump trucks, tractors and cargo trucks (China). Unofficial reference guide

sinotruk cargo truck

Sida Steyr ZZ1251M5641C1 cargo truck manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

Sida Steyr cargo truck ZZ1251M5641C1

ZZ1251M5641C1

Sida Steyr Chinese cargo truck ZZ1251M5641C1 manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of , , , vehicles, including cargo trucks); the cargo truck based on ZZ1251M5641C1 chassis. Rated capacity is 13850 kg, gross vehicle weight is 25000 kg, cargo body is 9250 × 600/800 × 2280 mm, cab seating capacity is  2, environmental standard is National III / Euro 3, wheelbase is 5550+1350 mm, engine: WD615.93E / WD615.93 / WD615.92 / WD615.92E / WD615.97C / WD615.97E / WD615.92C / WD615.93C, curb weight is of the China truck 11020 kg, diesel fuel, tires are 11.00-20 18PR, 11.00R20 16PR, 12.00-20 16PR, 12.00R20 14PR, max. speed is 90 km/h, without ABS.

Technical Specifications of the China truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ1251M5641C1
Vehicle typeCargo truck
VIN
  • LZZABLMH×××××××××
  • LZZABLNH×××××××××
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ1251M5641C1

Engine of the China truck Sida Steyr ZZ1251M5641C1

#Engine ModelEngine DisplacementEngine PowerEngine Manufacturer
1WD615.93E9726 cc213 kW (290 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
2WD615.939726 cc213 kW (290 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
3WD615.929726 cc196 kW (267 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
4WD615.92E9726 cc196 kW (267 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
5WD615.97C9726 cc221 kW (301 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
6WD615.97E9726 cc221 kW (301 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
7WD615.92C9726 cc198 kW (270 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
8WD615.93C9726 cc213 kW (290 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
General Engine Specifications
Fueldiesel fuel
Environmental standards complianceNational III / Euro 3

Dimensions and Weights of the China truck Sida Steyr ZZ1251M5641C1

Dimensions and Weight Specifications of the China truck
Overall Dimensions of the China truck
Overall length (mm)11570
Overall width (mm)2490
Overall height (mm)3140/3940
Cargo Body Dimensions
Cargo body length (mm)9250
Cargo body width (mm)600/800
Cargo body height (mm)2280
Weights, Ground Pressure and Capacity
Rated capacity (kg)13850
Curb weight of the China truck (kg)11020
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.26
Axle load distribution (kg)7000/18000  (tandem axle)
Wheel Base and Track
Wheelbase (mm)5550+1350
Front track (mm)1995, 2047
Rear track (mm)1820/1820, 1850/1850
Front and Rear Overhang
Front overhang (mm)1320
Rear overhang (mm)3350
Angle of Approach and Departure
Angle of approach (deg.)20.5
Angle of departure (deg.)9

Wheels and Tires

Tires and Wheels of the China truck Sida Steyr ZZ1251M5641C1
Number of axles3
Number of tires10
Tires dimension11.00-20 18PR, 11.00R20 16PR, 12.00-20 16PR, 12.00R20 14PR

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ1251M5641C1 (cargo truck)
Max. speed90
ABSnone
Cab seating capacity2
Steeringsteering wheel
Leaf springs10 / 12, 10 / -

Additional Information

When the car optional high roof cab height of 3940mm. The new car is optional mask. Materials used side guards Material: Q235A, connection bolt connection. The rear guard of the materials used Material: Q235A, connection to bolt connection, cross section size is 100 × 100mm, ground clearance is 530mm. Should be installed tachograph.
(Note: possible inaccuracies)

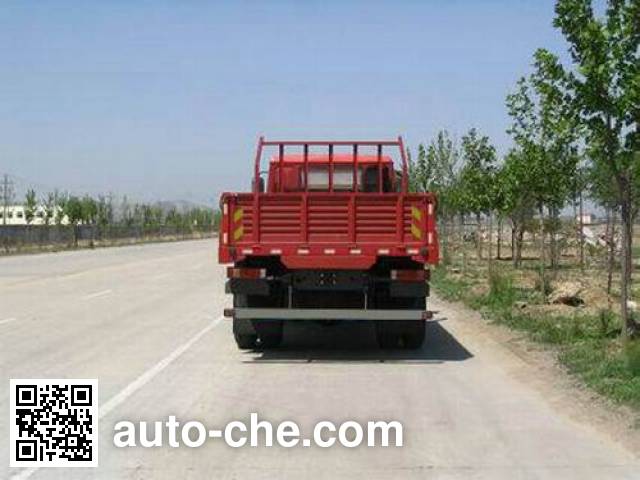

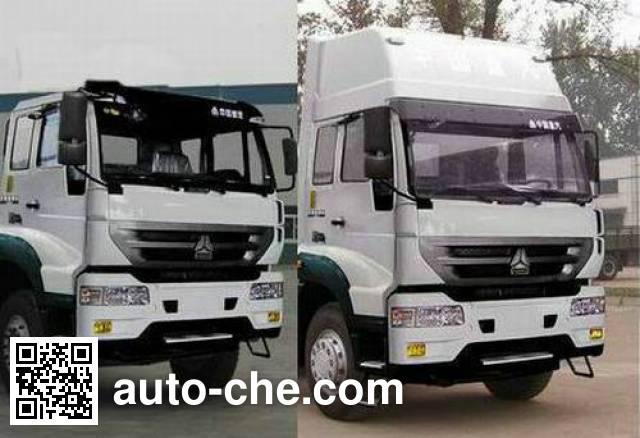

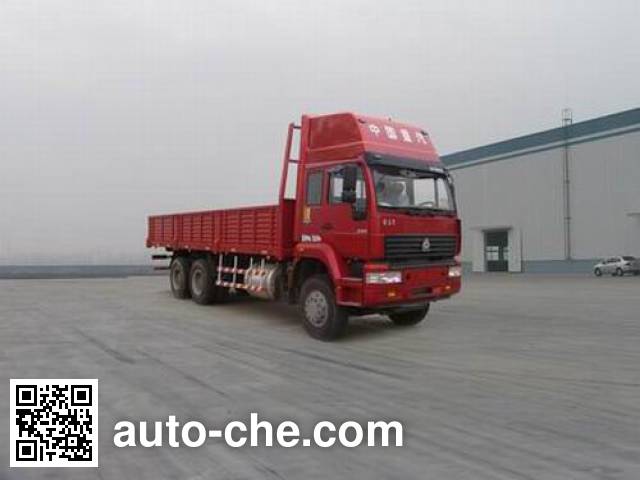

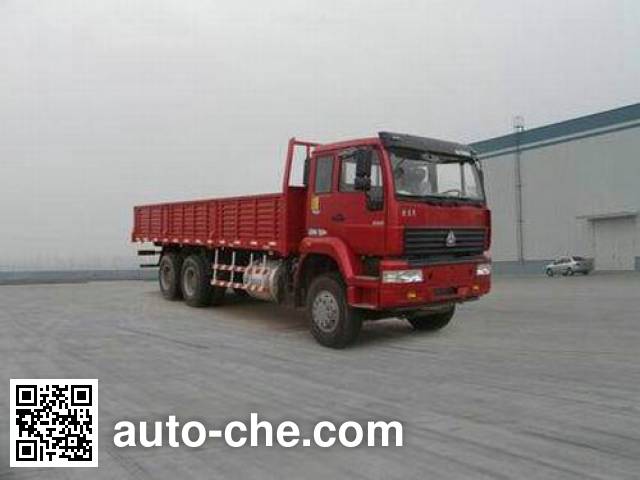

Photo gallery of the China truck Sida Steyr ZZ1251M5641C1

Sida Steyr cargo truck ZZ1251M5641C1 Sida Steyr cargo truck ZZ1251M5641C1 Sida Steyr cargo truck ZZ1251M5641C1 Sida Steyr cargo truck ZZ1251M5641C1 Sida Steyr cargo truck ZZ1251M5641C1 Sida Steyr cargo truck ZZ1251M5641C1
