sinotruk cargo truck

Sida Steyr ZZ1251M5241C cargo truck manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

Sida Steyr cargo truck ZZ1251M5241C

ZZ1251M5241C

Sida Steyr Chinese cargo truck ZZ1251M5241C manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of , , , vehicles, including cargo trucks); the cargo truck based on ZZ1251M5241C chassis. Cargo body is 8600 × 600/800 × 2280 mm, gross vehicle weight is 25000 kg, diesel fuel, cab seating capacity is  2, without ABS, rated capacity is 14250, 14120 kg, max. speed is 90 km/h, tires are 11.00-20 18PR, 11.00R20 16PR, 12.00-20 16PR, 12.00R20 14PR, environmental standard is National III / Euro 3, wheelbase is 5150+1350 mm, curb weight is of the China truck 10620, 10750 kg, engine: WD615.92 / WD615.93 / WD615.92E / WD615.93E / WD615.92C / WD615.93C / WD615.97C / WD615.97E.

Technical Specifications of the China truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ1251M5241C
Vehicle typeCargo truck
VIN
  • LZZABLMH×××××××××
  • LZZABMMH×××××××××
  • LZZABLNH×××××××××
  • LZZABMNH×××××××××
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ1251M5241C

Engine of the China truck Sida Steyr ZZ1251M5241C

#Engine ModelEngine DisplacementEngine PowerEngine Manufacturer
1WD615.929726 cc196 kW (267 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
2WD615.939726 cc213 kW (290 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
3WD615.92E9726 cc196 kW (267 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
4WD615.93E9726 cc213 kW (290 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
5WD615.92C9726 cc198 kW (270 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
6WD615.93C9726 cc213 kW (290 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
7WD615.97C9726 cc221 kW (301 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
8WD615.97E9726 cc221 kW (301 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
General Engine Specifications
Fueldiesel fuel
Environmental standards complianceNational III / Euro 3

Dimensions and Weights of the China truck Sida Steyr ZZ1251M5241C

Dimensions and Weight Specifications of the China truck
Overall Dimensions of the China truck
Overall length (mm)10920
Overall width (mm)2496
Overall height (mm)3140/3940
Cargo Body Dimensions
Cargo body length (mm)8600
Cargo body width (mm)600/800
Cargo body height (mm)2280
Weights, Ground Pressure and Capacity
Rated capacity (kg)14250, 14120
Curb weight of the China truck (kg)10620, 10750
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.35, 1.32
Axle load distribution (kg)7000/18000  (tandem axle)
Wheel Base and Track
Wheelbase (mm)5150+1350
Front track (mm)2047, 1995
Rear track (mm)1820/1820, 1850/1850
Front and Rear Overhang
Front overhang (mm)1320
Rear overhang (mm)3100
Angle of Approach and Departure
Angle of approach (deg.)20.5
Angle of departure (deg.)10

Wheels and Tires

Tires and Wheels of the China truck Sida Steyr ZZ1251M5241C
Number of axles3
Number of tires10
Tires dimension11.00-20 18PR, 11.00R20 16PR, 12.00-20 16PR, 12.00R20 14PR

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ1251M5241C (cargo truck)
Max. speed90
ABSnone
Cab seating capacity2
Steeringsteering wheel
Leaf springs12 / 12, 10 / 12, 10 / -

Additional Information

Optional high roof cab vehicle, the vehicle height is 3940mm. Container height and curb weight, the rated load weight, load mass utilization factor correspondence. The new car is optional mask. Materials used side guards Material: Q235A, connection bolt connection. The rear guard of the materials used Material: Q235A, connection to bolt connection, cross section size is 100 × 100mm, ground clearance is 530mm. Should be installed tachograph.
(Note: possible inaccuracies)

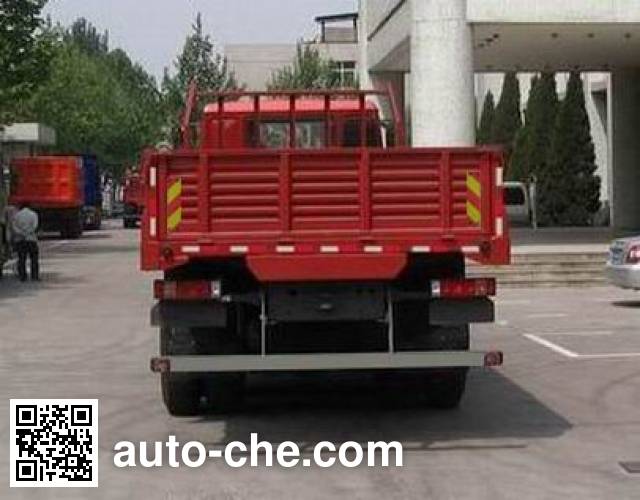

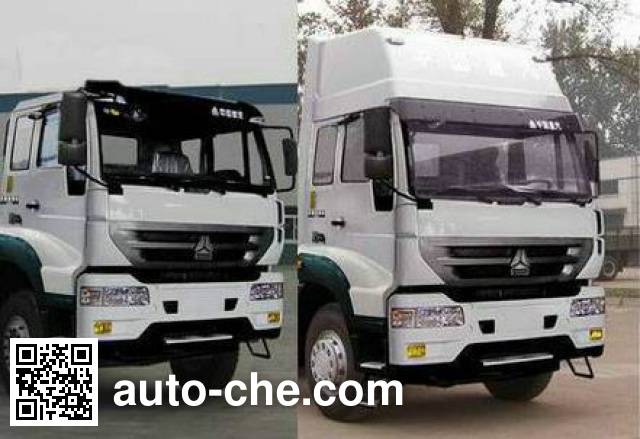

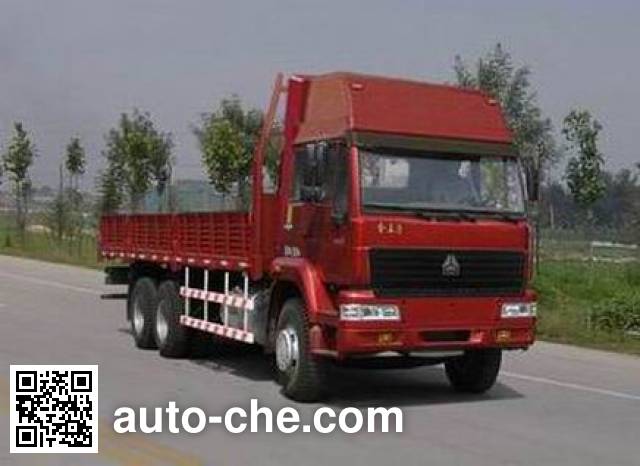

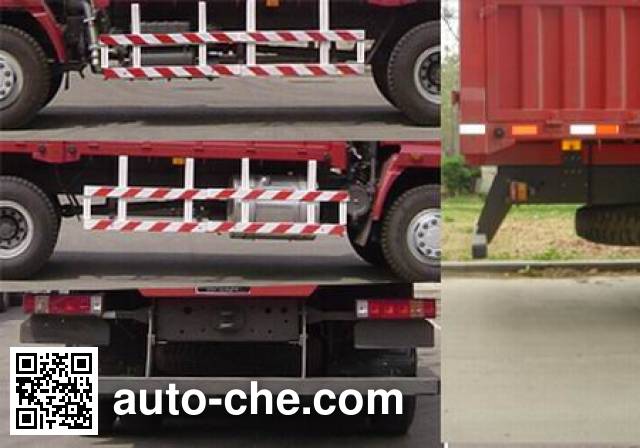

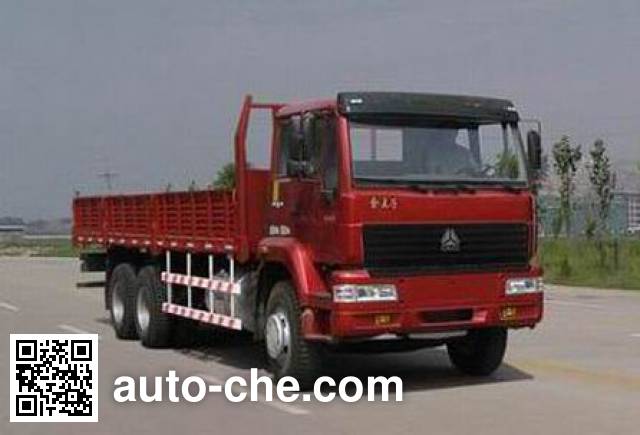

Photo gallery of the China truck Sida Steyr ZZ1251M5241C
