ZZ1251M3641C
Sida Steyr Chinese cargo truck ZZ1251M3641C manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo Sida Steyr Sinotruk Sitrak Huanghe
Technical Specifications of the China truck Sida Steyr Vehicle Overview Engine of the China truck Sida Steyr ZZ1251M3641C # Engine Model Engine Displacement Engine Power Engine Manufacturer 1 WD615.92 9726 cc 196 kW (267 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 2 WD615.93 9726 cc 213 kW (290 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 3 WD615.92E 9726 cc 196 kW (267 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 4 WD615.93E 9726 cc 213 kW (290 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 5 WD615.92C 9726 cc 198 kW (270 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 6 WD615.93C 9726 cc 213 kW (290 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 7 WD615.97C 9726 cc 221 kW (301 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 8 WD615.97E 9726 cc 221 kW (301 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 9 WD615.92NE 9726 cc 196 kW (267 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 10 WD615.97NE 9726 cc 221 kW (301 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
General Engine Specifications Fuel diesel fuel Environmental standards compliance National III / Euro 3
Dimensions and Weights of the China truck Sida Steyr ZZ1251M3641C Dimensions and Weight Specifications of the China truck Overall Dimensions of the China truck Overall length (mm) 8112 Overall width (mm) 2490 Overall height (mm) 3140 Cargo Body Dimensions Cargo body length (mm) 5900 Cargo body width (mm) 600/800 Cargo body height (mm) 2280 Weights, Ground Pressure and Capacity Rated capacity (kg) 15150, 15050 Curb weight of the China truck (kg) 9720, 9820 Gross vehicle weight (kg) 25000 Load factor (payload to weight ratio) 1.57, 1.54 Axle load distribution (kg) 7000/18000 (tandem axle) Wheel Base and Track Wheelbase (mm) 3600+1350 Front track (mm) 1995, 2047 Rear track (mm) 1820/1820, 1850/1850 Front and Rear Overhang Front overhang (mm) 1320 Rear overhang (mm) 1842 Angle of Approach and Departure Angle of approach (deg.) 20.5 Angle of departure (deg.) 24
Wheels and Tires Tires and Wheels of the China truck Sida Steyr ZZ1251M3641C Number of axles 3 Number of tires 10 Tires dimension 11.00-20 18PR, 11.00R20 16PR, 12.00-20 16PR, 12.00R20 14PR
Misc. Specifications Miscellaneous Specifications Sida Steyr ZZ1251M3641C (cargo truck) Max. speed 75, 78 ABS none Cab seating capacity 2 Steering steering wheel Leaf springs 12 / 12, 10 / 12, 9 / -

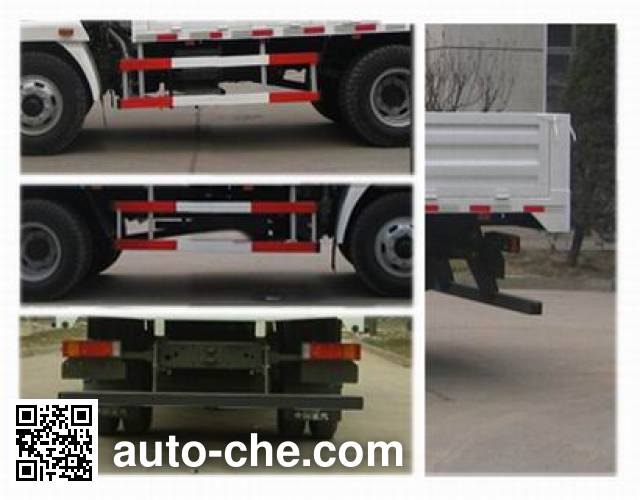

Additional Information The new car is optional mask. Materials used side guards Material: Q235A, connection bolt connection. The rear guard of the materials used Material: Q235A, connection to bolt connection, cross section size is 100 × 100mm, ground clearance is 530mm. Should be installed tachograph.(Note: possible inaccuracies)

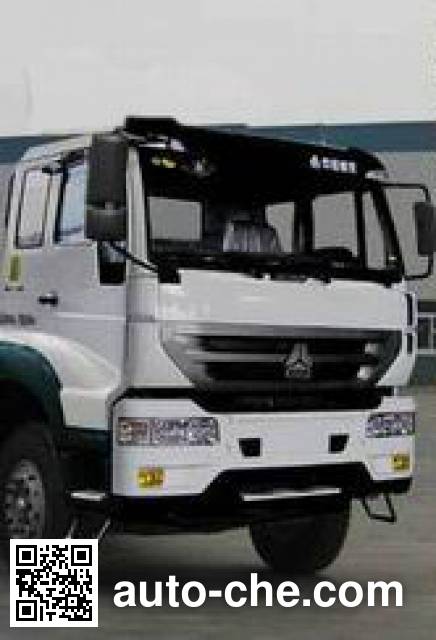

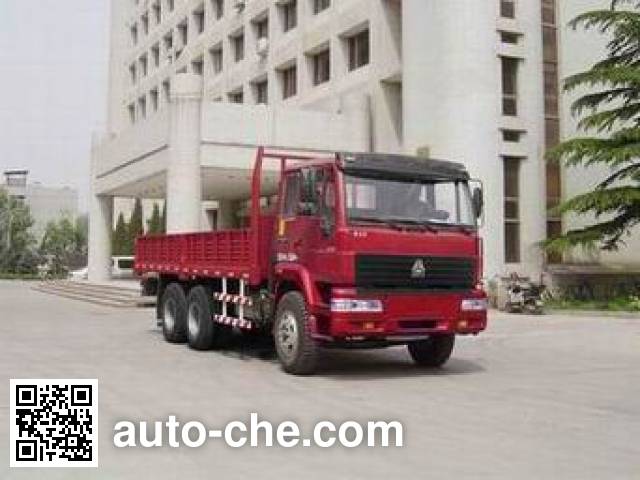

Photo gallery of the China truck Sida Steyr ZZ1251M3641C See Also Sida Steyr ZZ1121G521GE1 (cargo truck)
