sinotruk cargo truck

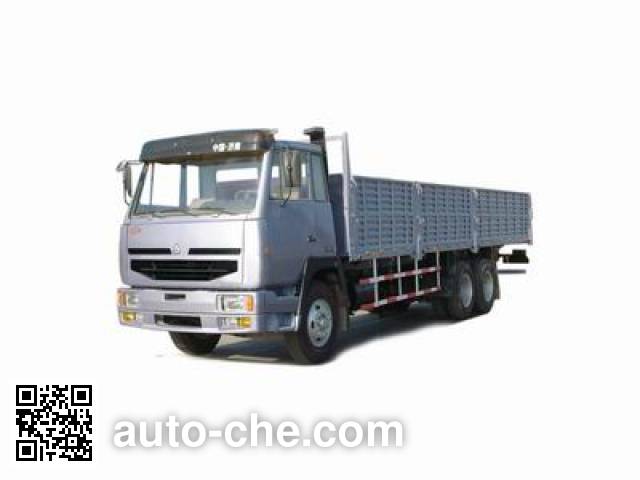

Sida Steyr ZZ1233K3841G cargo truck manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

Sida Steyr cargo truck ZZ1233K3841G

ZZ1233K3841G

Sida Steyr Chinese cargo truck ZZ1233K3841G manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of , , , vehicles, including cargo trucks); the cargo truck based on ZZ1233K3841G chassis. Cab seating capacity is  3, max. speed is 93 km/h, gross vehicle weight is 23490 kg, wheelbase is 3750+1300 mm, cargo body is 6200 × 2280 × 800 mm, engine: WD615.66 / WD615.61J, curb weight is of the China truck 9360 kg.

Technical Specifications of the China truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ1233K3841G
Vehicle typeCargo truck
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ1233K3841G

Engine of the China truck Sida Steyr ZZ1233K3841G

Engine Specifications of the China truck
Engine ModelWD615.66 / WD615.61J
Engine displacement (cc)9726 / 9726
Engine power (kW)185 / 190

Dimensions and Weights of the China truck Sida Steyr ZZ1233K3841G

Dimensions and Weight Specifications of the China truck
Overall Dimensions of the China truck
Overall length (mm)8633
Overall width (mm)2470
Overall height (mm)2950
Cargo Body Dimensions
Cargo body length (mm)6200
Cargo body width (mm)2280
Cargo body height (mm)800
Weights
Curb weight of the China truck (kg)9360
Gross vehicle weight (kg)23490
Load factor (payload to weight ratio)1.51
Wheel Base
Wheelbase (mm)3750+1300
Front and Rear Overhang
Front overhang (mm)1541
Rear overhang (mm)2042
Angle of Approach and Departure
Angle of approach (deg.)22
Angle of departure (deg.)18

Wheels and Tires

Tires and Wheels of the China truck Sida Steyr ZZ1233K3841G
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ1233K3841G (cargo truck)
Max. speed93
Cab seating capacity3
Steeringsteering wheel

Additional Information

The reflective marking should be installed at the rear of vehicle body.
(Note: possible inaccuracies)
