sinotruk cargo truck

Sida Steyr ZZ1166N5016C1 cargo truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sida Steyr cargo truck ZZ1166N5016C1

ZZ1166N5016C1

Sida Steyr Chinese cargo truck ZZ1166N5016C1 manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including cargo trucks); the cargo truck based on ZZ1166N5016C1 chassis. Wheelbase is 5000 mm, engine: WD615.95 / WD615.95E / WD615.95C / WD615.96C / WD615.96E, environmental standard is National III / Euro 3, diesel fuel, rated capacity is 7870 kg, max. speed is 90 km/h, cargo body is 6440 × 600 × 2326 mm, curb weight is of the China truck 8000 kg, cab seating capacity is  2, gross vehicle weight is 16000 kg, tires are 11.00-20, 11.00R20, 12.00-20, 12.00R20, without ABS.

Technical Specifications of the China truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ1166N5016C1
Vehicle typeCargo truck
VIN
  • LZZABBNG×××××××××
  • LZZABBSG×××××××××
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ1166N5016C1

Engine of the China truck Sida Steyr ZZ1166N5016C1

#Engine ModelEngine DisplacementEngine PowerEngine Manufacturer
1WD615.959726 cc247 kW (336 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
2WD615.95E9726 cc247 kW (336 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
3WD615.95C9726 cc249 kW (339 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
4WD615.96C9726 cc279 kW (380 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
5WD615.96E9726 cc276 kW (376 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
General Engine Specifications
Fueldiesel fuel
Environmental standards complianceNational III / Euro 3

Dimensions and Weights of the China truck Sida Steyr ZZ1166N5016C1

Dimensions and Weight Specifications of the China truck
Overall Dimensions of the China truck
Overall length (mm)9000
Overall width (mm)2496
Overall height (mm)3188
Cargo Body Dimensions
Cargo body length (mm)6440
Cargo body width (mm)600
Cargo body height (mm)2326
Weights, Ground Pressure and Capacity
Rated capacity (kg)7870
Curb weight of the China truck (kg)8000
Gross vehicle weight (kg)16000
Load factor (payload to weight ratio)1.00
Axle load distribution (kg)6000/10000
Wheel Base and Track
Wheelbase (mm)5000
Front track (mm)1939, 1958
Rear track (mm)1800, 1830
Front and Rear Overhang
Front overhang (mm)1560
Rear overhang (mm)2440
Angle of Approach and Departure
Angle of approach (deg.)15
Angle of departure (deg.)19

Wheels and Tires

Tires and Wheels of the China truck Sida Steyr ZZ1166N5016C1
Number of axles2
Number of tires6
Tires dimension11.00-20, 11.00R20, 12.00-20, 12.00R20

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ1166N5016C1 (cargo truck)
Max. speed90
ABSnone
Cab seating capacity2
Steeringsteering wheel
Leaf springs9 / 9+6

Additional Information

Side guards made of material used Q235A, bolted connection is; rear protective device made of materials used Q235A, as bolted connections, cross-sectional dimensions of 100mm × 100mm, ground clearance is 530mm. Should be installed tachograph.
(Note: possible inaccuracies)

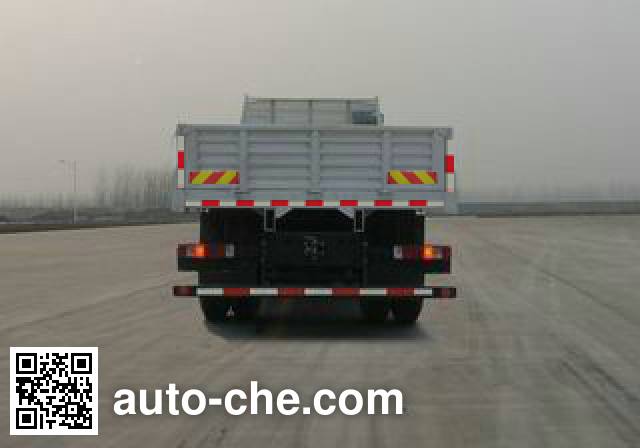

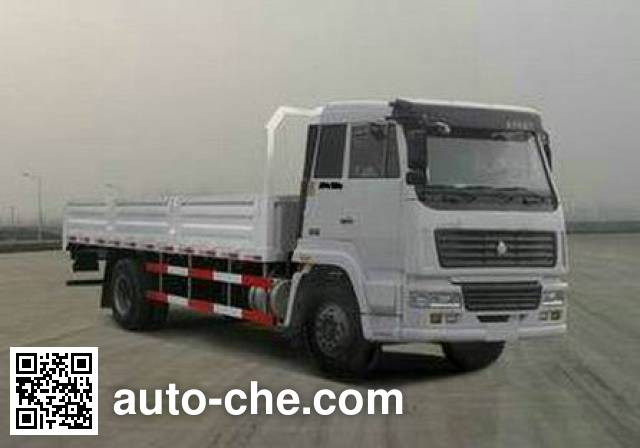

Photo gallery of the China truck Sida Steyr ZZ1166N5016C1
