Howo, Sitrak, CNHTC, Hania, Homan dump trucks, tractors and cargo trucks (China). Unofficial reference guide

sinotruk cargo truck

Sida Steyr ZZ1161M5011C cargo truck manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

Sida Steyr cargo truck ZZ1161M5011C

ZZ1161M5011C

Sida Steyr Chinese cargo truck ZZ1161M5011C manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of , , , vehicles, including cargo trucks); the cargo truck based on ZZ1161M5011C chassis. Without ABS, cab seating capacity is  2, environmental standard is National III / Euro 3, engine: WD615.92 / WD615.93 / WD615.92E / WD615.93E / WD615.92C / WD615.93C / WD615.97C / WD615.97E, tires are 11.00-20 18PR, 11.00R20 18PR, 12.00-20 16PR, 12.00R20 16PR, cargo body is 6630 × 600 × 2280 mm, max. speed is 90 km/h, gross vehicle weight is 16000 kg, rated capacity is 7870 kg, curb weight is of the China truck 8000 kg, diesel fuel, wheelbase is 5000, 4700 mm.

Technical Specifications of the China truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ1161M5011C
Vehicle typeCargo truck
VIN
  • LZZABBMG×××××××××
  • LZZABBMF×××××××××
  • LZZABBNG×××××××××
  • LZZABBNF×××××××××
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ1161M5011C

Engine of the China truck Sida Steyr ZZ1161M5011C

#Engine ModelEngine DisplacementEngine PowerEngine Manufacturer
1WD615.929726 cc196 kW (267 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
2WD615.939726 cc213 kW (290 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
3WD615.92E9726 cc196 kW (267 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
4WD615.93E9726 cc213 kW (290 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
5WD615.92C9726 cc198 kW (270 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
6WD615.93C9726 cc213 kW (290 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
7WD615.97C9726 cc221 kW (301 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
8WD615.97E9726 cc221 kW (301 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
General Engine Specifications
Fueldiesel fuel
Environmental standards complianceNational III / Euro 3

Dimensions and Weights of the China truck Sida Steyr ZZ1161M5011C

Dimensions and Weight Specifications of the China truck
Overall Dimensions of the China truck
Overall length (mm)9000
Overall width (mm)2496
Overall height (mm)3140/3940
Cargo Body Dimensions
Cargo body length (mm)6630
Cargo body width (mm)600
Cargo body height (mm)2280
Weights, Ground Pressure and Capacity
Rated capacity (kg)7870
Curb weight of the China truck (kg)8000
Gross vehicle weight (kg)16000
Load factor (payload to weight ratio)1.00
Axle load distribution (kg)6000/10000
Wheel Base and Track
Wheelbase (mm)5000, 4700
Front track (mm)2047, 1995
Rear track (mm)1820, 1850
Front and Rear Overhang
Front overhang (mm)1320
Rear overhang (mm)2680
Angle of Approach and Departure
Angle of approach (deg.)20.5
Angle of departure (deg.)17

Wheels and Tires

Tires and Wheels of the China truck Sida Steyr ZZ1161M5011C
Number of axles2
Number of tires6
Tires dimension11.00-20 18PR, 11.00R20 18PR, 12.00-20 16PR, 12.00R20 16PR

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ1161M5011C (cargo truck)
Max. speed90
ABSnone
Cab seating capacity2
Steeringsteering wheel
Leaf springs12 / 9+6, 10 / 9+6

Additional Information

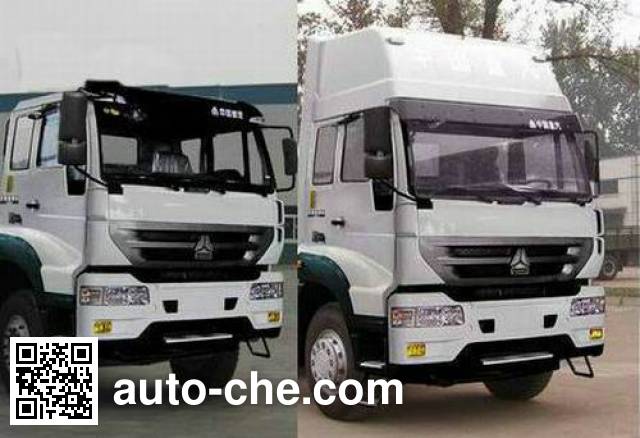

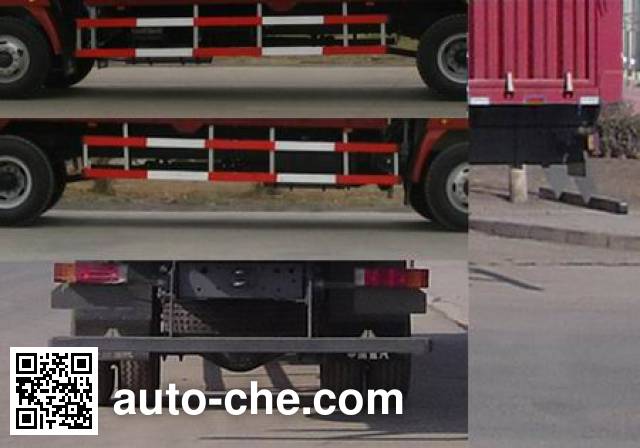

Optional high roof cab vehicle, the vehicle height is 3940mm. Optional new mask. Side guards made of material used Q235A, bolted connection is; rear protective device made of materials used Q235A, as bolted connections, cross-sectional dimensions of 100mm × 100mm, ground clearance is 530mm. Should be installed tachograph.
(Note: possible inaccuracies)

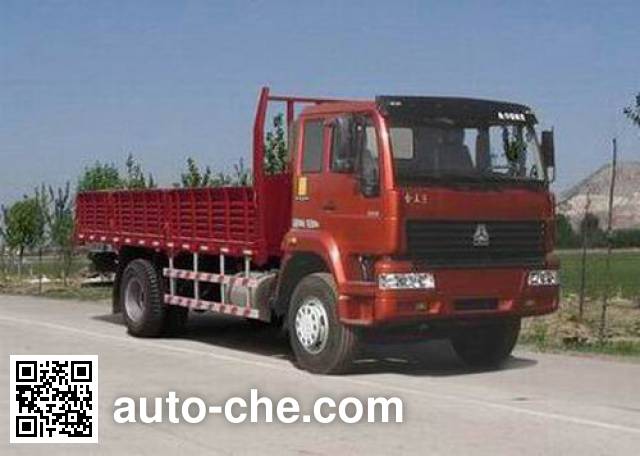

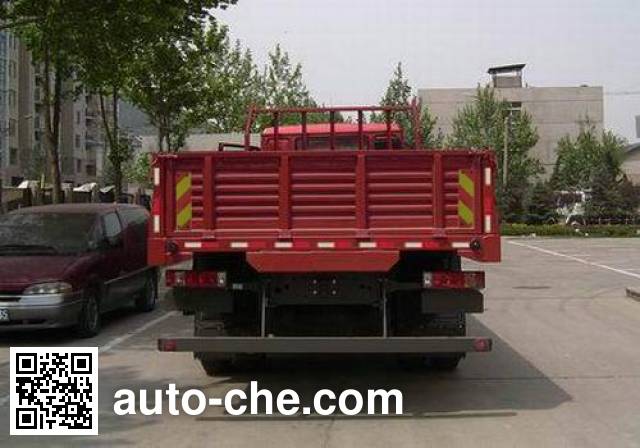

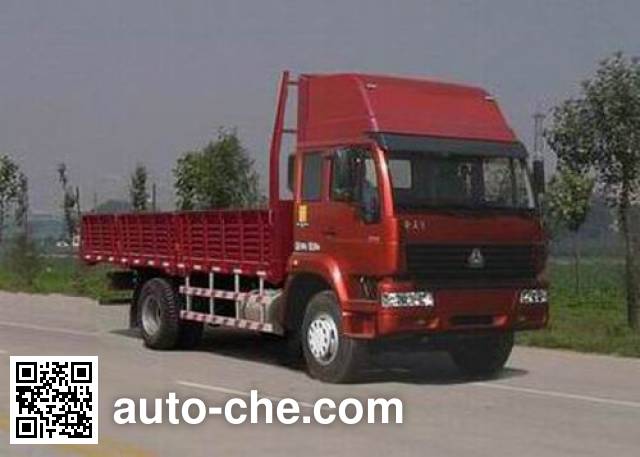

Photo gallery of the China truck Sida Steyr ZZ1161M5011C

Sida Steyr cargo truck ZZ1161M5011C Sida Steyr cargo truck ZZ1161M5011C Sida Steyr cargo truck ZZ1161M5011C Sida Steyr cargo truck ZZ1161M5011C Sida Steyr cargo truck ZZ1161M5011C Sida Steyr cargo truck ZZ1161M5011C
