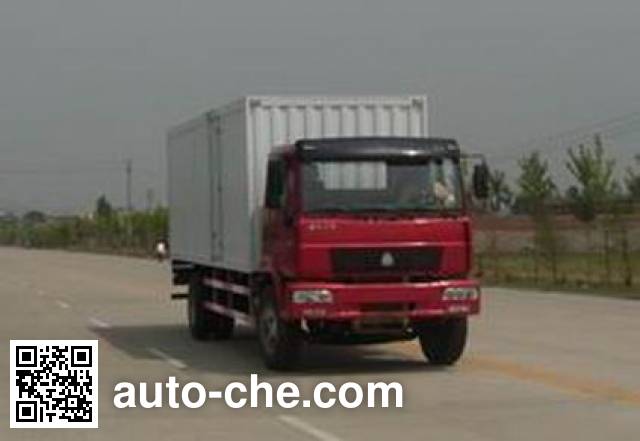

Huanghe ZZ5114XXYF5315A box van truck manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.
ZZ5114XXYF5315A
Huanghe Chinese box van truck ZZ5114XXYF5315A manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo, Sida Steyr, Sinotruk Sitrak, Huanghe vehicles, including box van trucks); the box van truck based on ZZ5114F5315A chassis. Cab seating capacity is 2, cargo body is 6800/6700 × 2400 × 2400 mm, engine: YC4E140-20 / YC4E160-20, max. speed is 95, 88 km/h, wheelbase is 5300 mm, curb weight is of the China van truck 7490 kg, gross vehicle weight is 11000 kg.
Technical Specifications of the China van truck Huanghe
Engine of the China van truck Huanghe ZZ5114XXYF5315A
Engine Specifications of the China van truck
Engine Model
YC4E140-20 / YC4E160-20
Engine displacement (cc)
4257 / 4257
Engine power (kW)
105 / 118
Dimensions and Weights of the China van truck Huanghe ZZ5114XXYF5315A
Dimensions and Weight Specifications of the China van truck
Overall Dimensions of the China van truck
Overall length (mm)
9000
Overall width (mm)
2500
Overall height (mm)
3760
Cargo Body Dimensions
Cargo body length (mm)
6800/6700
Cargo body width (mm)
2400
Cargo body height (mm)
2400
Weights, Ground Pressure
Curb weight of the China van truck (kg)
7490
Gross vehicle weight (kg)
11000
Axle load distribution (kg)
4500/6500
Wheel Base
Wheelbase (mm)
5300
Front and Rear Overhang
Front overhang (mm)
1250
Rear overhang (mm)
2450
Angle of Approach and Departure
Angle of approach (deg.)
24.5
Angle of departure (deg.)
12
Wheels and Tires
Tires and Wheels of the China van truck Huanghe ZZ5114XXYF5315A
Number of axles
2
Misc. Specifications
Miscellaneous Specifications Huanghe ZZ5114XXYF5315A (box van truck)
Max. speed
95, 88
Cab seating capacity
2
Steering
steering wheel
Additional Information
Optional long cab car, the corresponding cargo compartment length 6700mm. When the optional YC4E140-20 engine, a top speed of 95km / h, while the optional YC4E160-20 engine, a top speed of 88km / h. The car top cargo compartment closed, not open. (Note: possible inaccuracies)
