Huanghe Chinese dump truck (tipper truck) ZZ3314K3066C1 manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo, Sida Steyr, Sinotruk Sitrak, Huanghe vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3314K3066C1 chassis. Without ABS, diesel fuel, environmental standard is National III / Euro 3, engine: YC6A260-33, wheelbase is 1800+3050+1350 mm, tires are 10.00-20 18PR, 10.00R20 18PR, 11.00-20 18PR, 11.00R20 18PR, gross vehicle weight is 31000 kg, rated capacity is 16035 kg, cab seating capacity is 3, curb weight is of the China dump truck 14770 kg, cargo body is 6200 × 1340 × 2300 mm, max. speed is 80 km/h.
Technical Specifications of the China dump truck Huanghe
Optional long cab. Compartment dump mode after unloading. Optional Compartment appearance of the structure. Side guards made of material used Q235A, bolted connection is; rear protective device made of materials used Q235A, as bolted connections, cross-sectional dimensions of 100mm × 100mm, ground clearance is 530mm. Optional narrow fender structure, the former correspond / rear overhang (mm) 1250/1370 Approach / departure angle of 24.5/36. Optional bumper. Should be installed tachograph. (Note: possible inaccuracies)

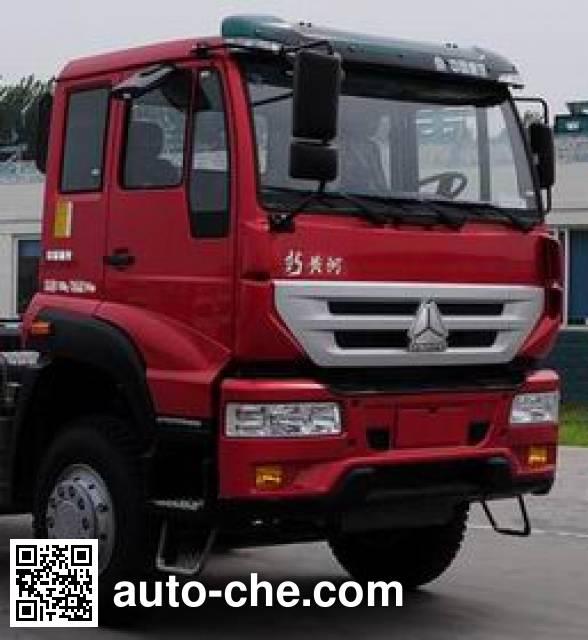

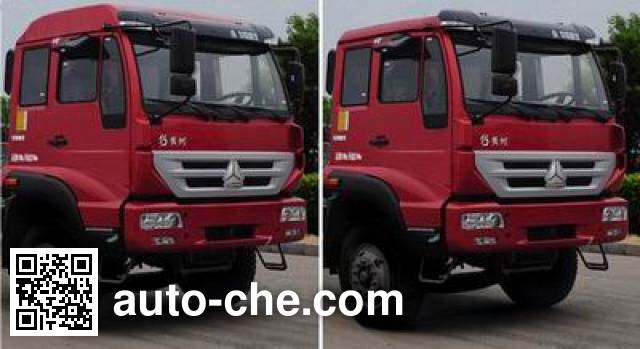

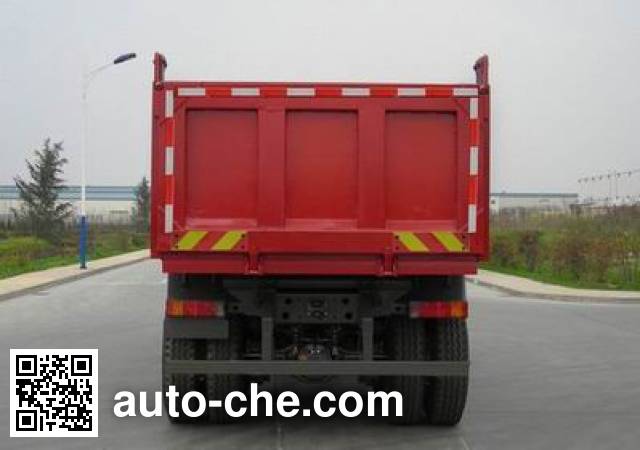

Photo gallery of the China dump truck Huanghe ZZ3314K3066C1
