Huanghe ZZ3167G5015C1S dump truck manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

ZZ3167G5015C1S

Huanghe Chinese dump truck (tipper truck) ZZ3167G5015C1S manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo, Sida Steyr, Sinotruk Sitrak, Huanghe vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3167G5015C1S chassis. Tires are 9.00R20, 10.00-20, 10.00R20, curb weight is of the China dump truck 8000 kg, rated capacity is 7805 kg, diesel fuel, cargo body is 6500 × 800 × 2300 mm, engine: YC4E140-33 / YC4E160-33, cab seating capacity is  3, without ABS, gross vehicle weight is 16000 kg, max. speed is 75 km/h, environmental standard is National III / Euro 3, wheelbase is 5000 mm.

Technical Specifications of the China dump truck Huanghe

Vehicle Overview

Engine of the China dump truck Huanghe ZZ3167G5015C1S

Dimensions and Weights of the China dump truck Huanghe ZZ3167G5015C1S

Wheels and Tires

Misc. Specifications

Additional Information

Compartment way side dump dump. Side guards made of material used Q235A, bolted connection is; rear protective device made of materials used Q235A, as bolted connections, cross-sectional dimensions of 120mm × 30mm, ground clearance is 530mm. Should be installed tachograph.
(Note: possible inaccuracies)

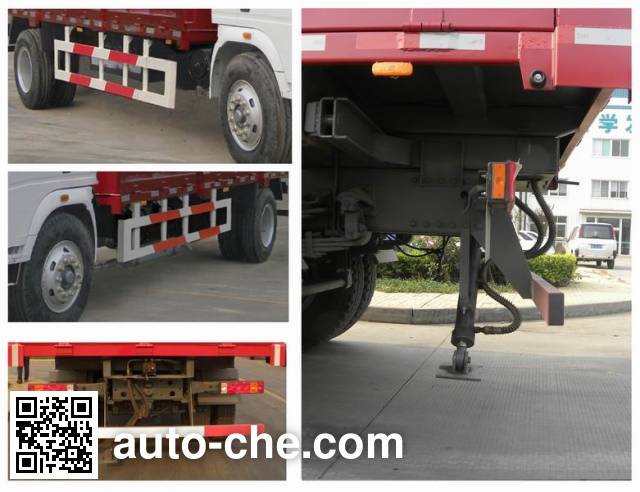

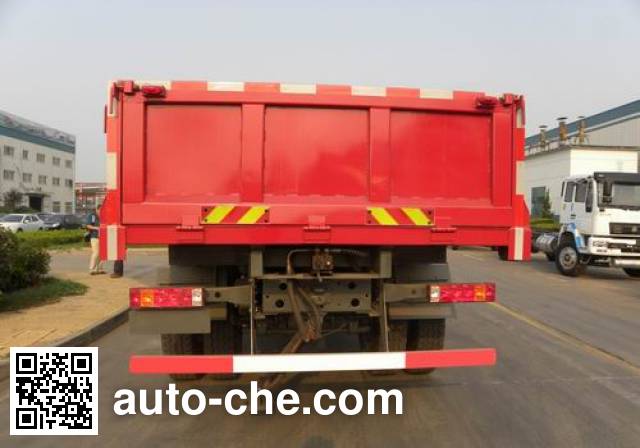

Photo gallery of the China dump truck Huanghe ZZ3167G5015C1S
