Huanghe ZZ3164F5016C1S dump truck manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

ZZ3164F5016C1S

Huanghe Chinese dump truck (tipper truck) ZZ3164F5016C1S manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo, Sida Steyr, Sinotruk Sitrak, Huanghe vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3164F5016C1S chassis. Max. speed is 75 km/h, gross vehicle weight is 16000 kg, cargo body is 6650 × 600/800 × 2300 mm, environmental standard is National III / Euro 3, rated capacity is 7805 kg, cab seating capacity is  3, curb weight is of the China dump truck 8000 kg, tires are 9.00R20 16PR, 10.00-20 18PR, 10.00R20 18PR, without ABS, engine: YC4E140-33 / YC4E160-33, wheelbase is 5000 mm, diesel fuel.

Technical Specifications of the China dump truck Huanghe

Vehicle Overview

Engine of the China dump truck Huanghe ZZ3164F5016C1S

Dimensions and Weights of the China dump truck Huanghe ZZ3164F5016C1S

Wheels and Tires

Misc. Specifications

Additional Information

Compartment way side dump dump. Optional Compartment appearance of the structure. Side guards made of material used Q235A, bolted connection is; rear protective device made of materials used Q235A, as bolted connections, cross-sectional dimensions of 100mm × 100mm, ground clearance is 530mm. Should be installed tachograph.
(Note: possible inaccuracies)

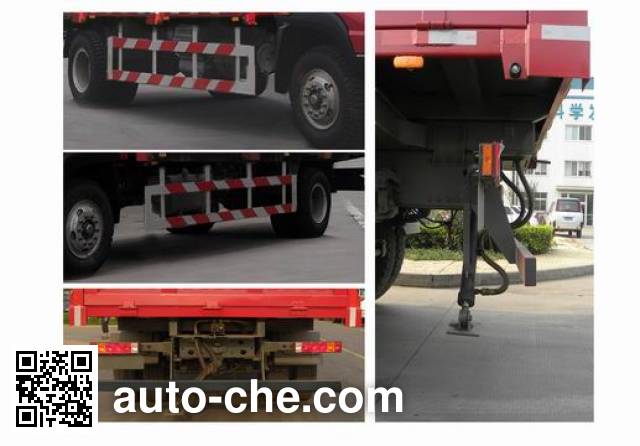

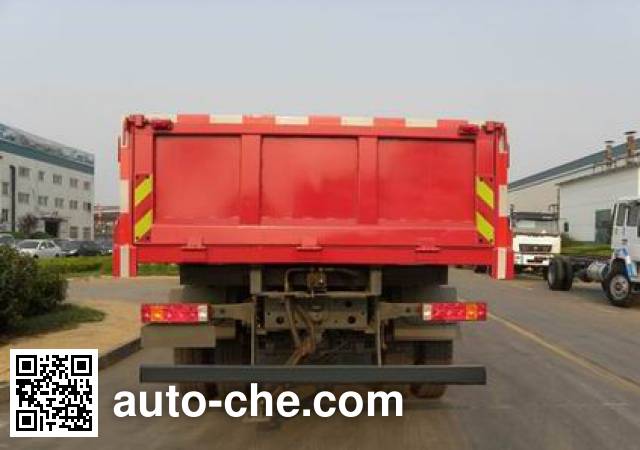

Photo gallery of the China dump truck Huanghe ZZ3164F5016C1S
