ZZ3121G4015

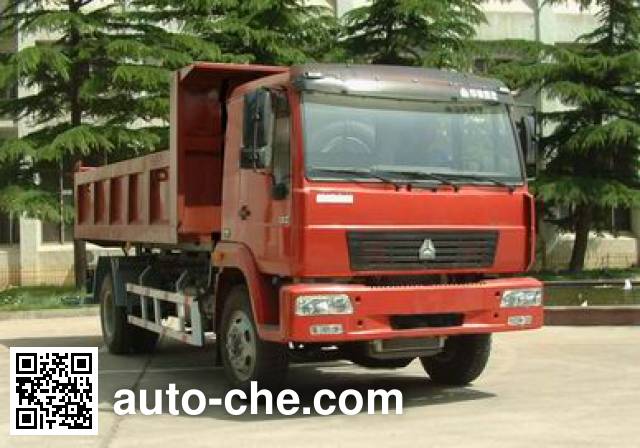

Huanghe Chinese dump truck (tipper truck) ZZ3121G4015 manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo Sida Steyr Sinotruk Sitrak Huanghe
Technical Specifications of the China dump truck Huanghe Vehicle Overview Engine of the China dump truck Huanghe ZZ3121G4015 Engine Specifications of the China dump truck Engine Model TBD226B-6ⅡE / YC6J190-20 / WD415.18 Engine displacement (cc) 6230 / 6494 / 6480 Engine power (kW) 132 / 140 / 137
Dimensions and Weights of the China dump truck Huanghe ZZ3121G4015 Dimensions and Weight Specifications of the China dump truck Overall Dimensions of the China dump truck Overall length (mm) 7110 Overall width (mm) 2500 Overall height (mm) 2965 Cargo Body Dimensions Cargo body length (mm) 4600 Cargo body width (mm) 2300 Cargo body height (mm) 800 Weights, Ground Pressure Curb weight of the China dump truck (kg) 6120 Gross vehicle weight (kg) 12490 Load factor (payload to weight ratio) 1.04 Axle load distribution (kg) 4200/8290 Wheel Base Wheelbase (mm) 4000 Front and Rear Overhang Front overhang (mm) 1250 Rear overhang (mm) 1860 Angle of Approach and Departure Angle of approach (deg.) 24.5 Angle of departure (deg.) 19
Wheels and Tires Tires and Wheels of the China dump truck Huanghe ZZ3121G4015 Number of axles 2
Misc. Specifications Miscellaneous Specifications Huanghe ZZ3121G4015 (dump truck) Max. speed 72 Cab seating capacity 2 Steering steering wheel
Additional Information The car optional green lid container. Container lid on the quality of 200kg(Note: possible inaccuracies)
