Huanghe ZZ1164K5016D1 truck chassis manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

Huanghe truck chassis ZZ1164K5016D1

ZZ1164K5016D1

Huanghe Chinese truck chassis ZZ1164K5016D1 manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of , , , vehicles, including truck chassis). With ABS, cab seating capacity is  3, wheelbase is 5000 mm, diesel fuel, curb weight is of the China truck chassis 5190 kg, gross vehicle weight is 16000 kg, engine: YC6J190-46 / YC6J220-46, tires are 10.00R20, max. speed is 79, 95 km/h.

Technical Specifications of the China truck chassis Huanghe

Vehicle Overview

MakeHuanghe
Vehicle modelZZ1164K5016D1
Vehicle typeTruck chassis
VIN
  • LZZMBBGG×××××××××
  • LZZMBBHG×××××××××
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.

Engine of the China truck chassis Huanghe ZZ1164K5016D1

#Engine ModelEngine DisplacementEngine PowerEngine Manufacturer
1YC6J190-466494 cc140 kW (191 hp)Guangxi Yuchai Machinery Co., Ltd.
2YC6J220-466494 cc162 kW (221 hp)Guangxi Yuchai Machinery Co., Ltd.
General Engine Specifications
Fueldiesel fuel

Dimensions and Weights of the China truck chassis Huanghe ZZ1164K5016D1

Dimensions and Weight Specifications of the China truck chassis
Overall Dimensions of the China truck chassis
Overall length (mm)8650
Overall width (mm)2470
Overall height (mm)2760
Weights, Ground Pressure
Curb weight of the China truck chassis (kg)5190
Gross vehicle weight (kg)16000
Axle load distribution (kg)6000/10000
Wheel Base and Track
Wheelbase (mm)5000
Front track (mm)1900, 2020
Rear track (mm)1860
Front and Rear Overhang
Front overhang (mm)1250
Rear overhang (mm)2400
Angle of Approach and Departure
Angle of approach (deg.)16
Angle of departure (deg.)18

Wheels and Tires

Tires and Wheels of the China truck chassis Huanghe ZZ1164K5016D1
Number of axles2
Number of tires6
Tires dimension10.00R20

Misc. Specifications

Miscellaneous Specifications Huanghe ZZ1164K5016D1 (truck chassis)
Max. speed79, 95
ABShave
Cab seating capacity3
Steeringsteering wheel
Leaf springs11 / 9+8

Additional Information

When the optional YC6J190-46 engine net power of 135kW, VIN is LZZMBBGG ×××××××××; when the optional YC6J220-46 engine net power of 153kW, VIN is LZZMBBHG ×××××××× ×. ABS system model 4460046300, producers of WABCO Vehicle Control Systems (China) Co., Ltd. YC6J220-46 car engine, the optional speed limiting device, the speed limit 79km / h.
(Note: possible inaccuracies)

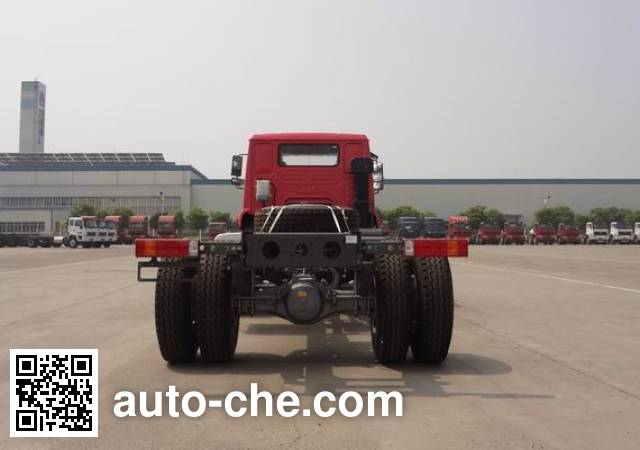

Photo gallery of the China truck chassis Huanghe ZZ1164K5016D1

Huanghe truck chassis ZZ1164K5016D1 Huanghe truck chassis ZZ1164K5016D1 Huanghe truck chassis ZZ1164K5016D1
